Sub Switch

Install in the reverse order of removal.

SWITCH POSITION TERMINAL SPECIFICATION (DRIVER'S SEAT)

	Switch position	Terminal No.	Standard
Driver's seat	UP	10 and 2, 7 and 1	Less than 1 Ω
	OFF	2 and 7, 1 and 2	Less than 1 Ω
	DOWN	10 and 1, 7 and 2	Less than 1 Ω
	AUTO DOWN	10 and 1, 7 and 2	Less than 1 Ω

SWITCH POSITION TERMINAL SPECIFICATION (PASSENGER'S SEAT)

	Switch position	Terminal No.	Standard
Passenger's seat	UP	10 and 14, 7 and 11	Less than 1 Ω
	OFF	7 and 14, 7 and 11	Less than 1 Ω
	DOWN	10 and 11, 7 and 14	Less than 1 Ω

SWITCH POSITION TERMINAL SPECIFICATION (REAR SEAT RH)

	Switch position	Terminal No.	Standard
Rear seat RH	UP	10 and 13, 7 and 12	Less than 1 Ω
	OFF	7 and 13, 7 and 12	Less than 1 Ω
	DOWN	10 and 12, 7 and 13	Less than 1 Ω

SWITCH POSITION TERMINAL SPECIFICATION (REAR SEAT LH)

	Switch position	Terminal No.	Standard
Rear seat LH	UP	10 and 8, 7 and 9	Less than 1 Ω
	OFF	7 and 8, 7 and 9	Less than 1 Ω
	DOWN	9 and 10, 7 and 8	Less than 1 Ω

Replace the main switch if faulty.

Measure switch resistance.

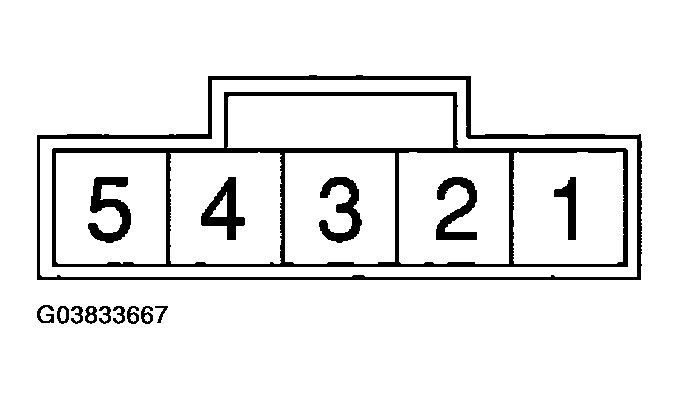

Fig 1: Identifying Switch Terminal

G03833667

Courtesy of SUBARU OF AMERICA, INC.

SWITCH POSITION TERMINAL SPECIFICATION (PASSENGER'S SEAT AND REAR)

	Switch position	Terminal No.	Standard
Passenger's seat and rear	UP	2 and 3, 4 and 5	Less than 1 Ω
	OFF	1 and 2, 4 and 5	Less than 1 Ω
	DOWN	1 and 2, 3 and 4	Less than 1 Ω

Replace the sub switch if faulty.
