Clutch System: Flywheel: Installation

NOTE: The illustration Fig 1 is for Turbo model. However, perform the same procedure for Non-turbo model.

Set the flywheel and ST.
ST 498497100 CRANKSHAFT STOPPER

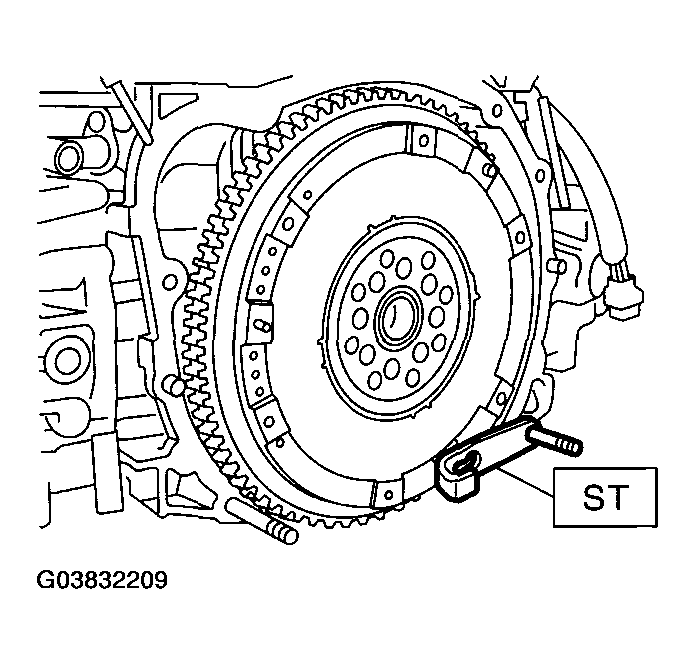

Fig 1: Installing Flywheel Using Special Tool
Courtesy of SUBARU OF AMERICA, INC.
Tighten the flywheel mounting bolts to specified torque.
ST 499057000 TORX® PLUS

NOTE: Tighten the flywheel installing bolts gradually. Each bolt should be tightened to the specified torque in a crisscross order.

Tightening torque:

72 N.m (7.3 kgf-m, 52.8 ft-lb)

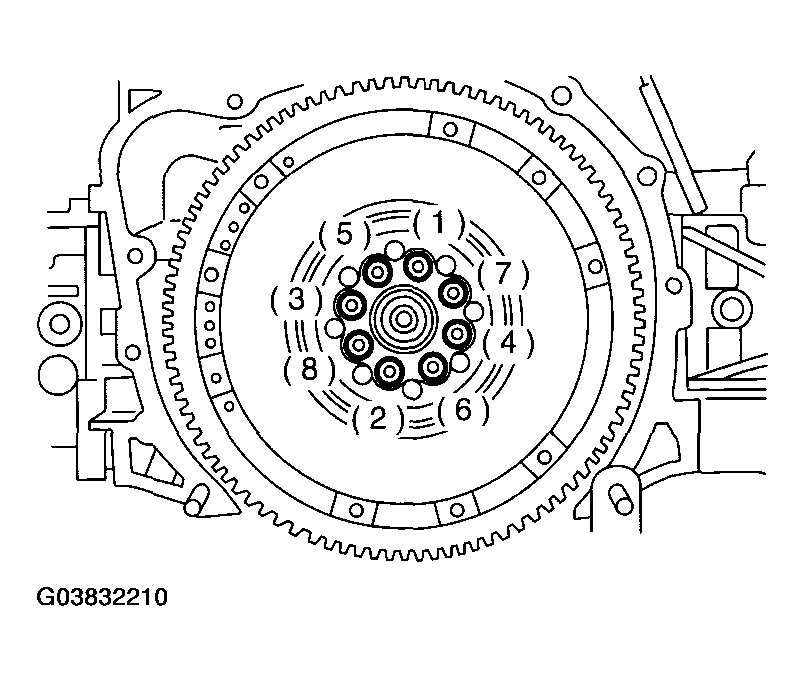

Fig 2: Tightening Flywheel Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the clutch disc and cover. < Ref. to , INSTALLATION , Clutch Disc and Cover. >
Install the transmission assembly. < Ref. to INSTALLATION , Manual Transmission Assembly. >
