Tie Downs

Tie-downs are used when transporting vehicles and when using the chassis dynamo.

• Tie-down points

  Attach tie-downs only to the specified points on the vehicle.

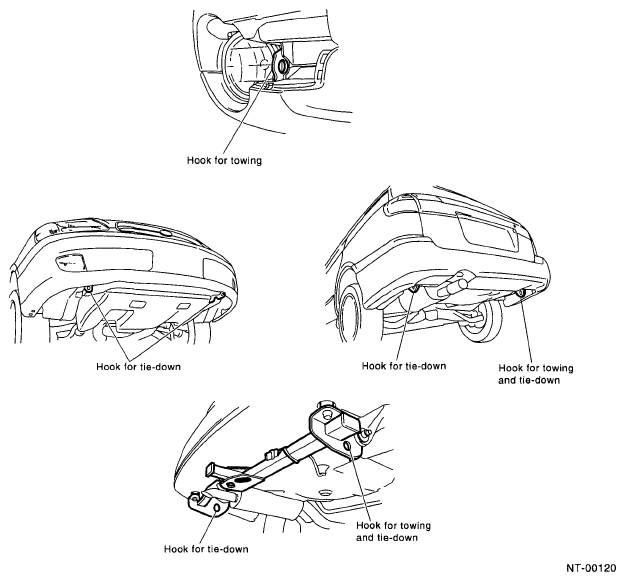

  Fig 1: Identifying Tie-Down Points

  Courtesy of SUBARU OF AMERICA, INC.
• Chain direction at tie-down condition

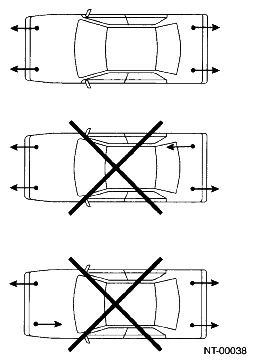

  Fig 2: Chain Direction At Tie-Down Condition

  Courtesy of SUBARU OF AMERICA, INC.
• Chain pulling range at tie-down condition
  Fig 3: Identifying Chain Pulling Range At Tie-Down Condition

  Courtesy of SUBARU OF AMERICA, INC.
• Vehicle sinking volume at tie-down condition

  Measure distance L between tire highest point to arch highest point before tie-down and after tie-down. Difference of measurement value (drop height) shall be within 50.8 mm (2.00 in). Make sure to fix a vehicle securely.

  Fig 4: Identifying Distance Between Tire Highest Point To Arch Highest Point

  Courtesy of SUBARU OF AMERICA, INC.
