Accelerator Pedal: Disassembly

  1. Remove the clip, and then remove the accelerator pedal from the bracket.
  2. Pull out the spring pin, and then remove the accelerator pedal from the accelerator pedal lever.

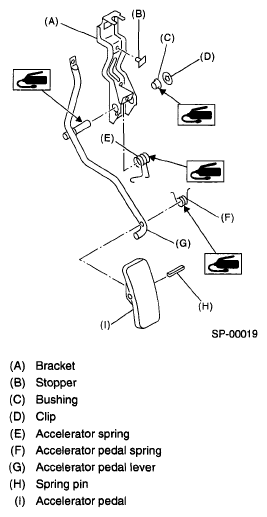

    Fig 1: Disassembling Accelerator Pedal
    G04988613Courtesy of SUBARU OF AMERICA, INC.
