General Information: Note: Note: Tie-Downs

Tie downs are used when transporting vehicles and when using the chassis dynamo. Attach tie-down only to the specified place on the vehicle.

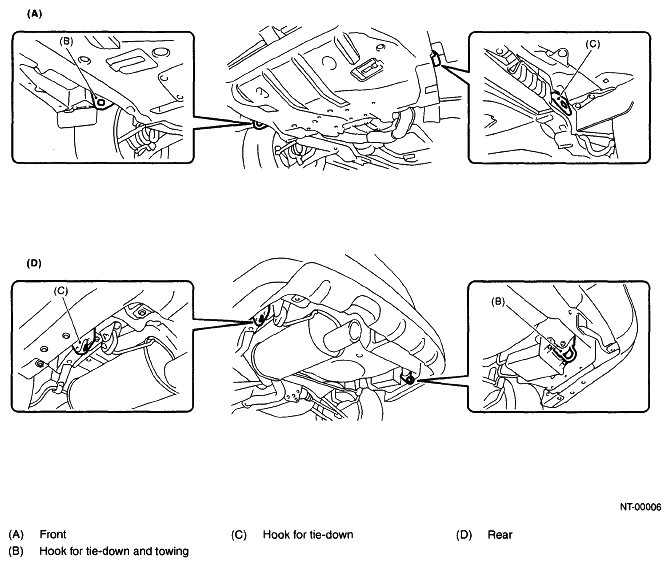

Fig 1: Identifying Tie-Downs

CHAIN DIRECTION AT TIE-DOWN CONDITION

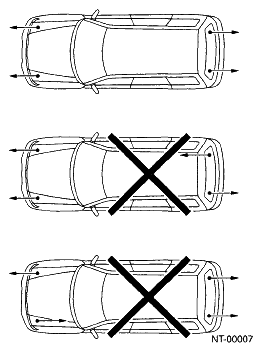

Fig 2: Identifying Chain Direction At Tie-Down Condition

CHAIN PULLING RANGE AT TIE-DOWN CONDITION

Fig 3: Identifying Chain Pulling Range At Tie-Down Condition

VEHICLE SINKING VOLUME AT TIE-DOWN CONDITION

Measure the distance between the highest tire point and highest arch point before and after tie-down. Difference of measured values (sinking volume) should be within 50 mm (1.97 in) and make sure to fix the vehicle securely.

Fig 4: Identifying Distance Between Highest Tire Point And Highest Arch Point
