Combination Meter: Removal

  1. Disconnect the ground cable from battery.
  2. Set the tilt steering at the lowest position.
  3. Remove the instrument panel lower cover. < Ref. to REMOVAL , Instrument Panel Lower Cover. >
  4. Remove the screws of the combination meter (one on the upper side, two on lower side) and pull while tilting the meter towards yourself.

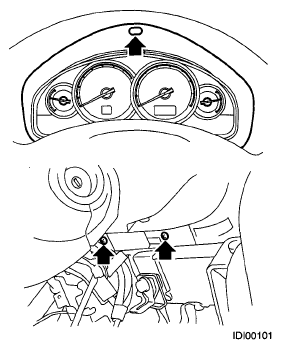

    Fig 1: Locating Combination Meter Screws
    G05022712
  5. Disconnect the connector in the rear side of combination meter to remove meter.
    CAUTION:
    • Be careful not to damage the meter or instrument panel.
    • Pay particular attention to avoid damaging the meter glass.
