Inspection

Toe-in:

0+/-3 mm (0+/-0.12 in)

1. Set the toe-in gauge in the position at wheel axis center height behind the right and left front tires.
2. Measure the distance "A" between the marks which are put on the centers of left and right tires.
3. Move the vehicle forward and rotate the tires 180°.
   NOTE: Be sure to rotate the tires in the forward direction.
4. Measure the distance "B" between the left and right marks. Detect toe-in by the following equation:

A-B = Toe-in

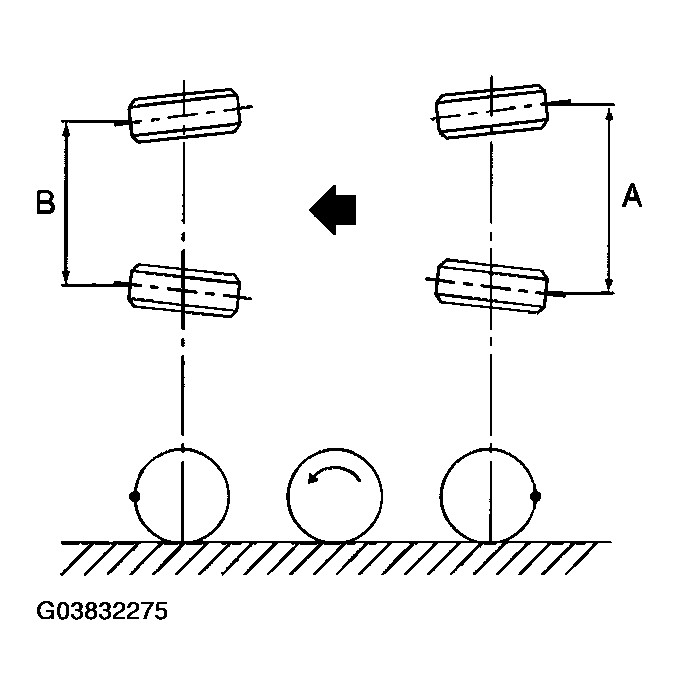

Fig 1: Identifying Toe In Position

Courtesy of SUBARU OF AMERICA, INC.
