Home >> Subaru >> 2007 >> B9 Tribeca Base >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel Injection System (H6DO) >> General Description >> Components With Torque Specifications >> Intake Manifold

Intake Manifold

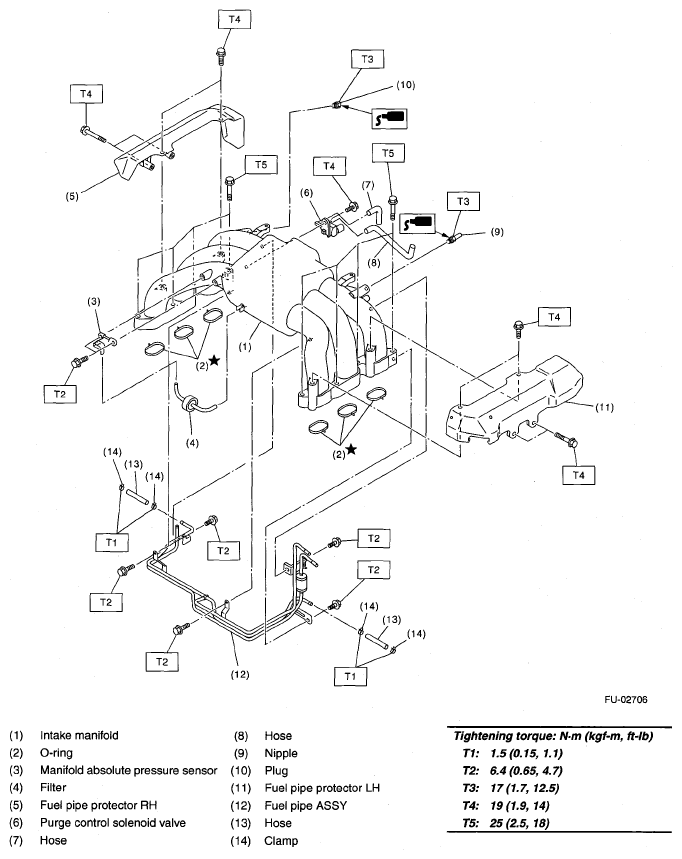

Fig 1: Intake Manifold Replacement Components With Torque Specifications
G05345522Courtesy of SUBARU OF AMERICA, INC.
