Identification Number And Label Locations

The V.I.N. (Vehicle Identification Numbers) is used to classify the vehicle.

• POSITIONING OF THE PLATE LABEL FOR IDENTIFICATION

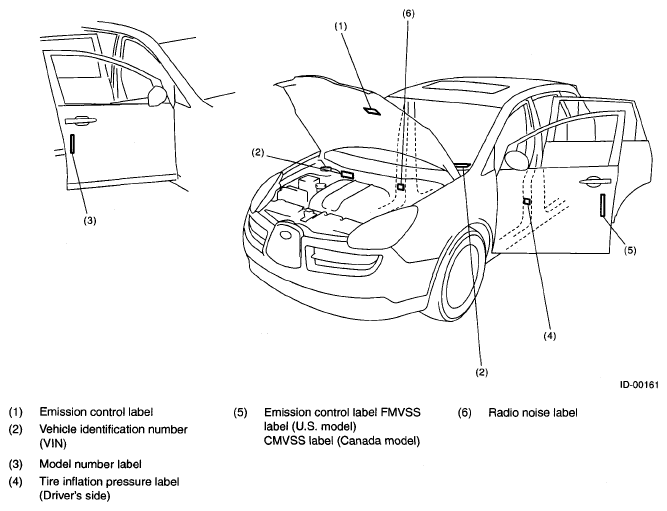

  Fig 1: Identifying Positioning Of Plate Label For Identification

  Courtesy of SUBARU OF AMERICA, INC.
• ENGINE
  Fig 2: Identifying Engine Serial Number And Engine Type (Crankcase Upper Side)

  Courtesy of SUBARU OF AMERICA, INC.
• AUTOMATIC TRANSMISSION
  Fig 3: Identifying Automatic Transmission Type Label

  Courtesy of SUBARU OF AMERICA, INC.
• REAR DIFFERENTIAL
  Fig 4: Identifying Rear Differential Label Location

  Courtesy of SUBARU OF AMERICA, INC.
• MODEL NUMBER LABEL
  Fig 5: Identifying Model Number Label

  Courtesy of SUBARU OF AMERICA, INC.
