Home >> Subaru >> 2007 >> Outback i, Automatic >> Repair and Diagnosis >> Transmission >> Clutch System >> General Description >> Components With Torque Specifications >> Master Cylinder

Master Cylinder

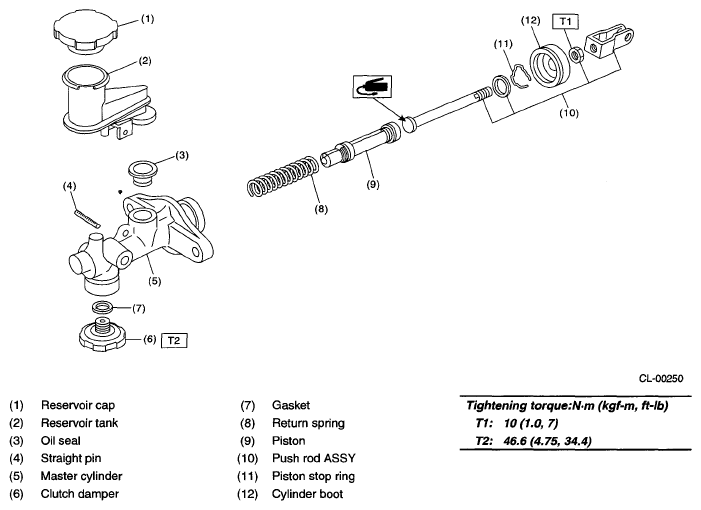

Fig 1: Master Cylinder Replacement Components With Torque Specifications
G05342716Courtesy of SUBARU OF AMERICA, INC.
