Front Wheel Toe-In

Toe-in:

Permissible value:

0++/-3 mm (0++/-0.12 in)

1. Set the toe-in gauge to rear sides of right and left front tires at height corresponding to center of spindle.
2. Mark each right and left tires at height corresponding to center of spindle and measure the distance "A" between marks.
3. Move the vehicle forward to rotate wheels 180°.
   NOTE: Whenever rotating the wheels, drive the vehicle forward.
4. Measure the distance "B" between right and left marks. Toe-in can then be obtained by the following equation:

   A-B = Toe-in

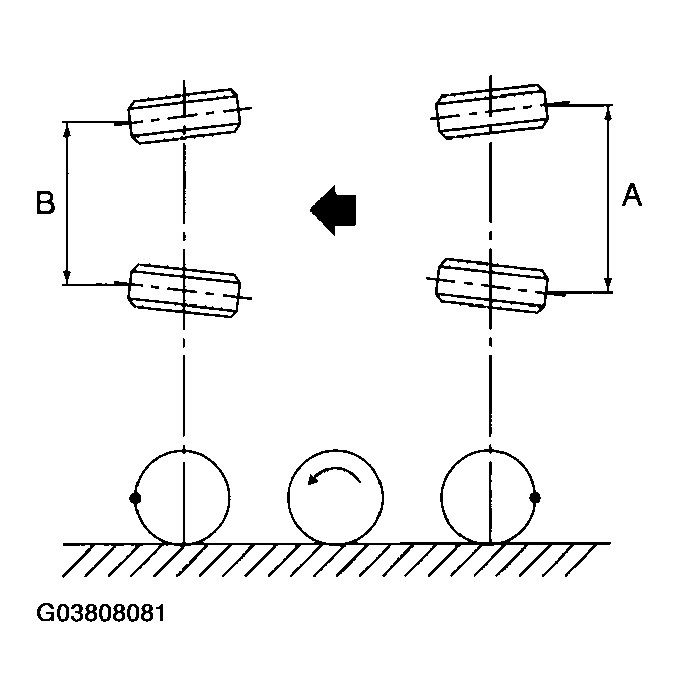

   Fig 1: Identifying Toe-In Dimensions

   Courtesy of SUBARU OF AMERICA, INC.

Adjust to specified value at adjustment, if it exceeds the permissible value.

Toe-in:

Permissible value:

0++/-2 mm (0++/-0.08 in)

1. Make sure that the right and left steering angles are within specified value.
2. Loosen the right and left side steering tie-rods lock nuts.
3. Turn the right and left tie rods equal amounts until the toe-in is at the specified value at adjustment. Both the right and left tie-rods are right-hand threaded. To increase toe-in, turn both tie-rods clockwise equal amounts (as viewed from inside of the vehicle).

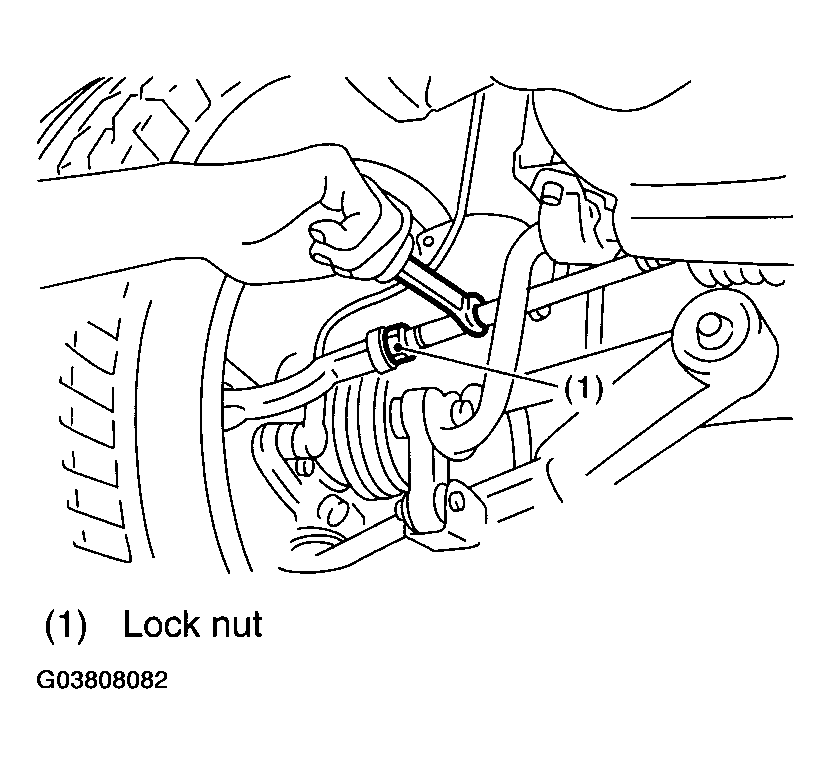

   Fig 2: Tightening Tie-Rod End Lock Nut

   Courtesy of SUBARU OF AMERICA, INC.
4. Tighten the tie-rod lock nut.

   Tightening torque:

   85 N.m (8.7 kgf-m, 62.9 ft-lb)

   NOTE: Correct the tie-rod boot, if it is twisted.
