Home >> Subaru >> 2008 >> Forester XT, Automatic >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel Injection System (H4DOTC) >> General Description >> Components With Torque Specifications >> Intake Manifold

Intake Manifold

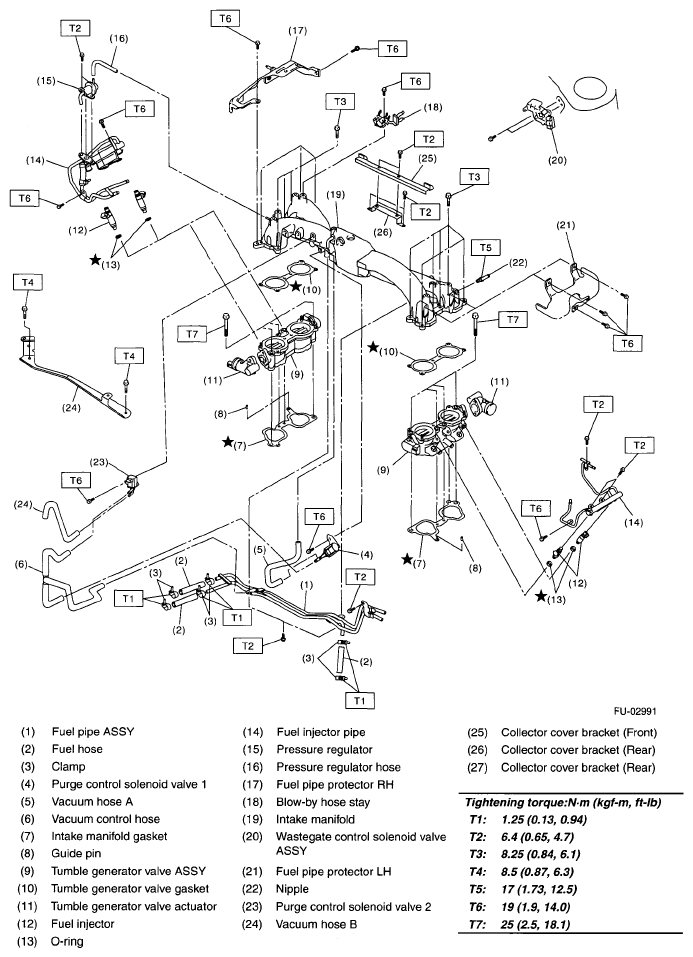

Fig 1: Exploded View Of Intake Manifold Components With Torque Specifications
G05324225Courtesy of SUBARU OF AMERICA, INC.
