Power Steering System
>>
General Description
>>
Components
>>
Power Assisted System
Power Assisted System

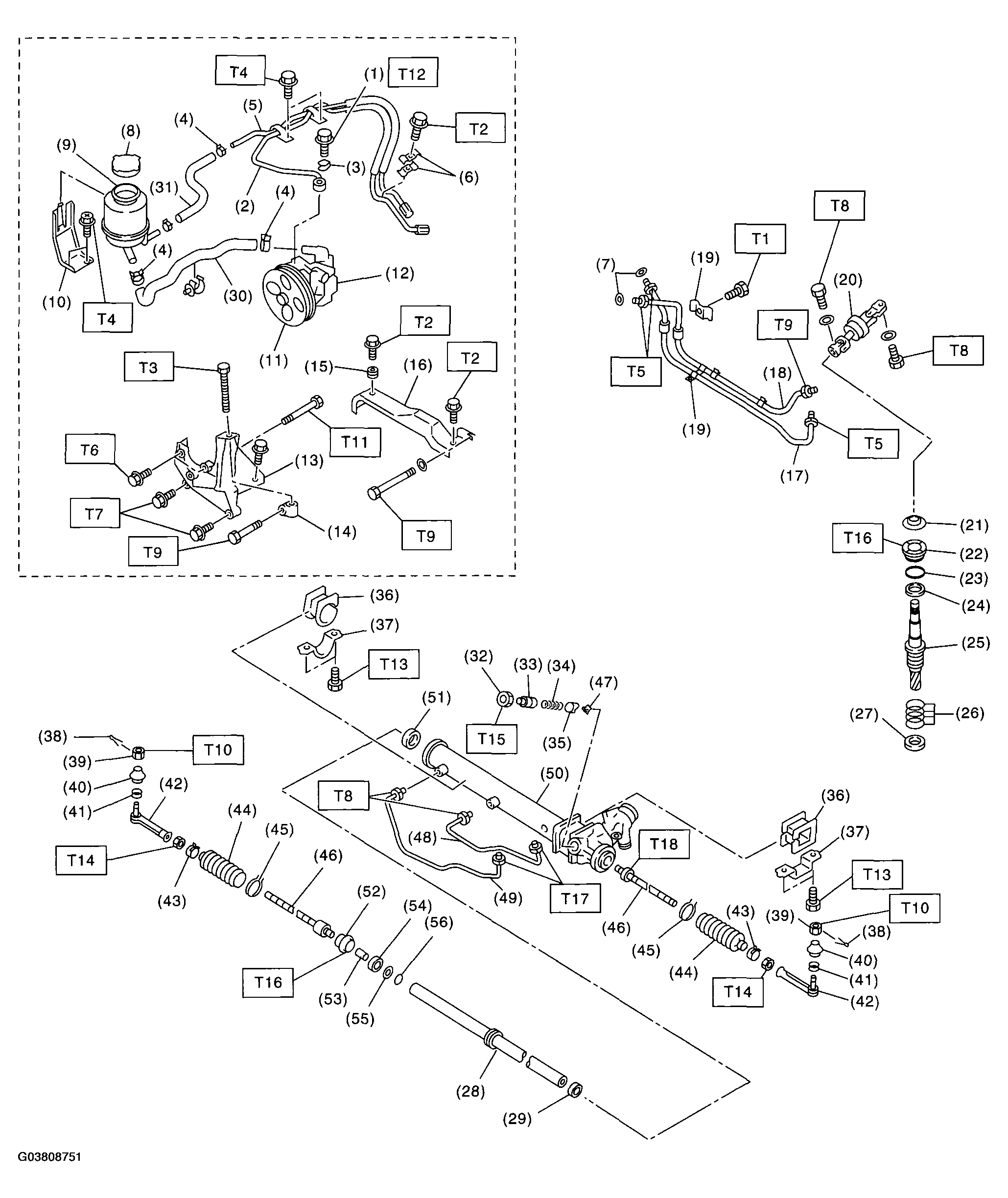

Fig 1: Identifying Components Of Power Assisted System
Courtesy of SUBARU OF AMERICA, INC.

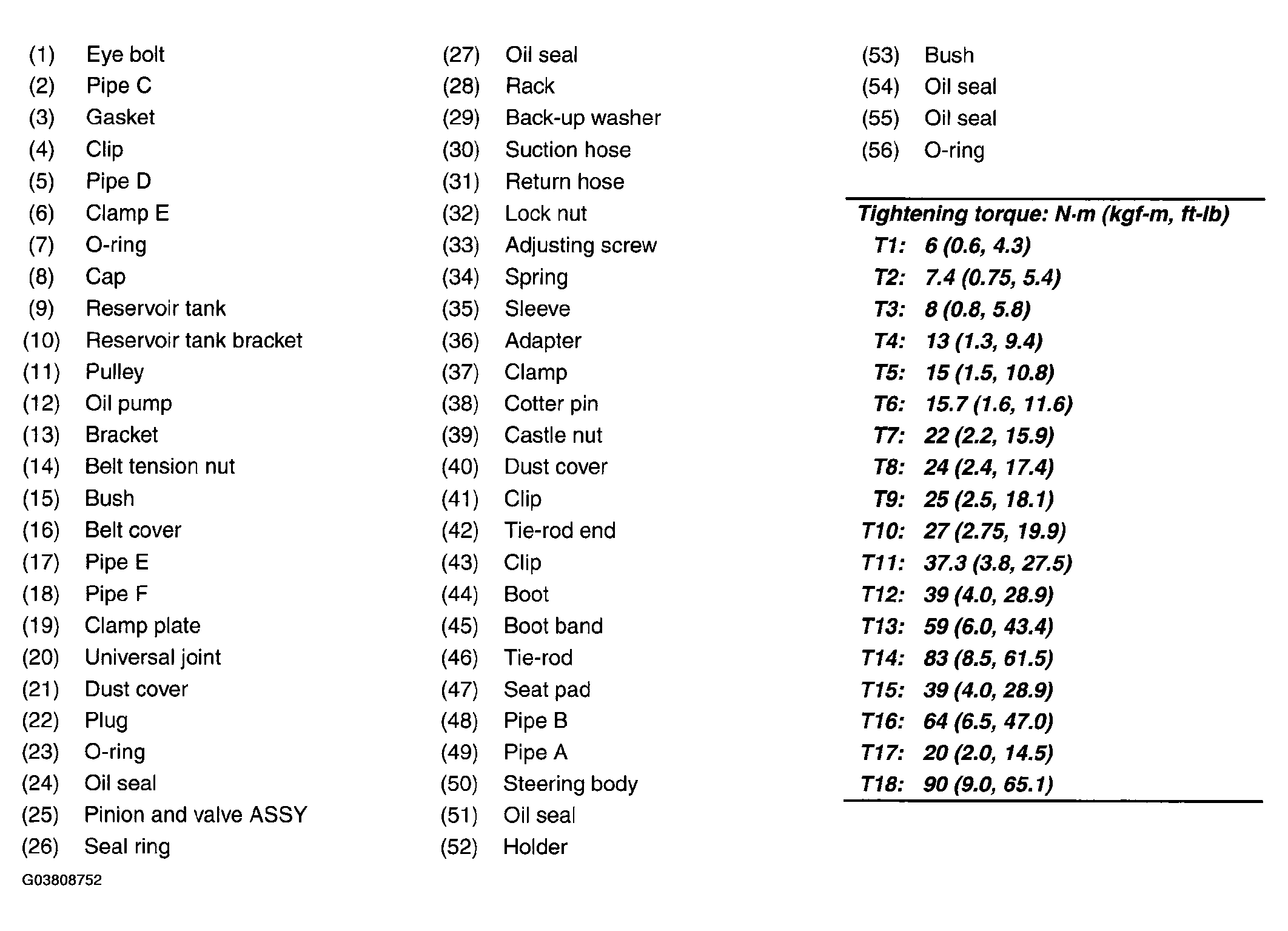

Fig 2: Power Assisted System Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
