Sub Frame: Removal

  1. Lift-up the vehicle.
  2. Remove the under cover.
  3. Remove the bolt cover.

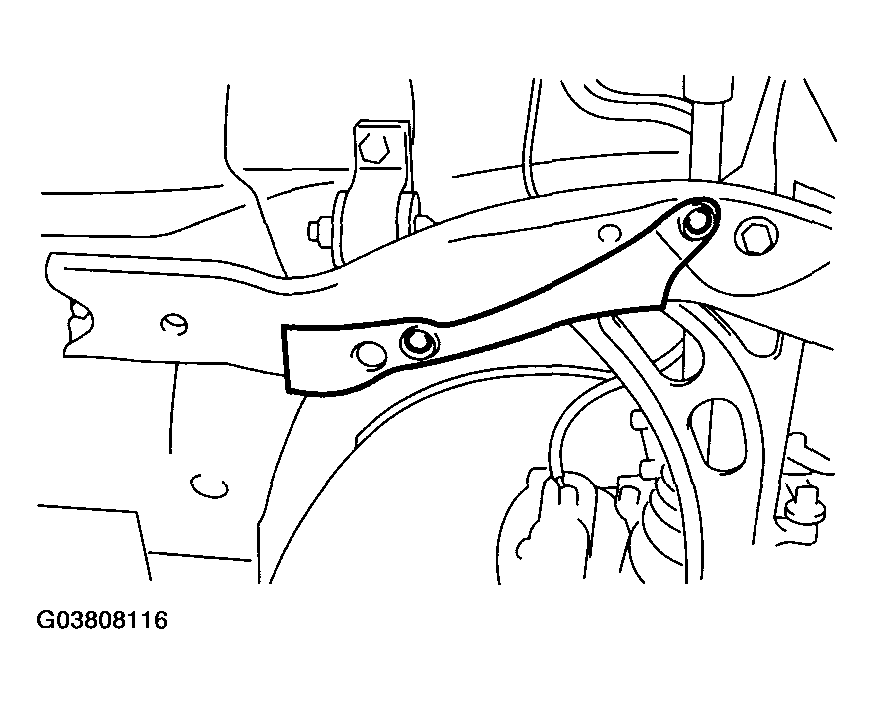

    Fig 1: Identifying Under Cover
    G03808116Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the clip.

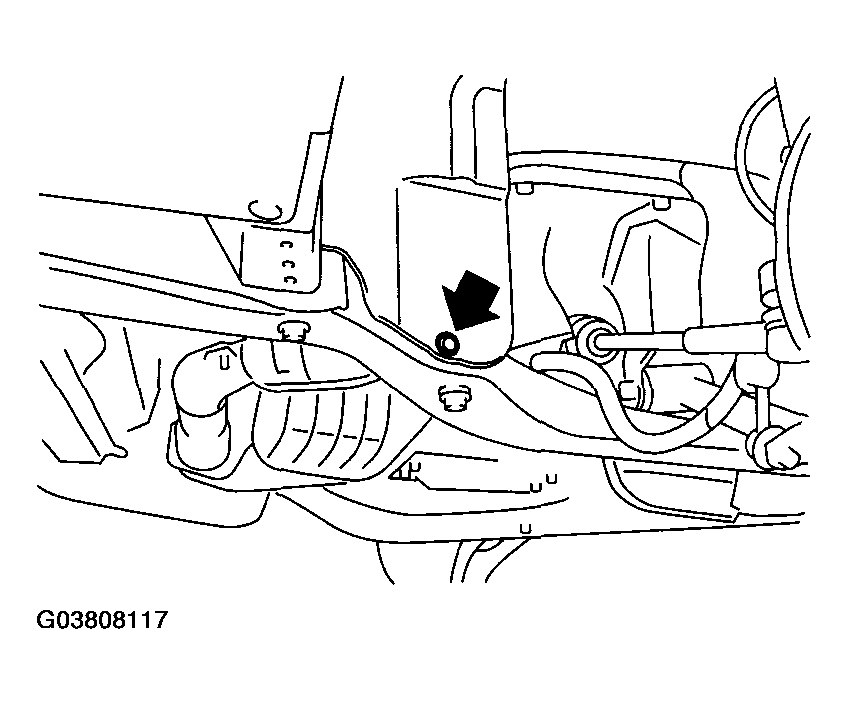

    Fig 2: Identifying Clip
    G03808117Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the sub frame.
    NOTE: Loosen bolt (1) and leave a few threads caught, then remove the bolts in the order of (2), (3), (4), (5), and (6).

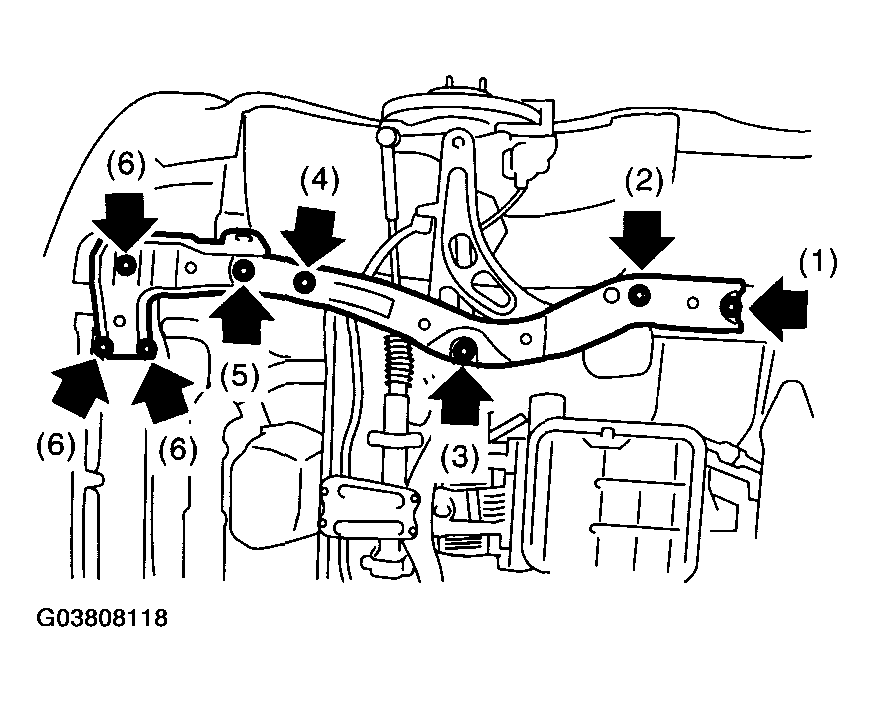

    Fig 3: Identifying Subframe Bolts
    G03808118Courtesy of SUBARU OF AMERICA, INC.
