General Information: Notices: Note: Towing

Avoid towing vehicles except when the vehicle cannot be driven. For models with AWD, AT or VTD, use a loader instead of towing. When towing other vehicles, pay attention to the following to prevent hook or vehicle damage resulting from excessive weight.

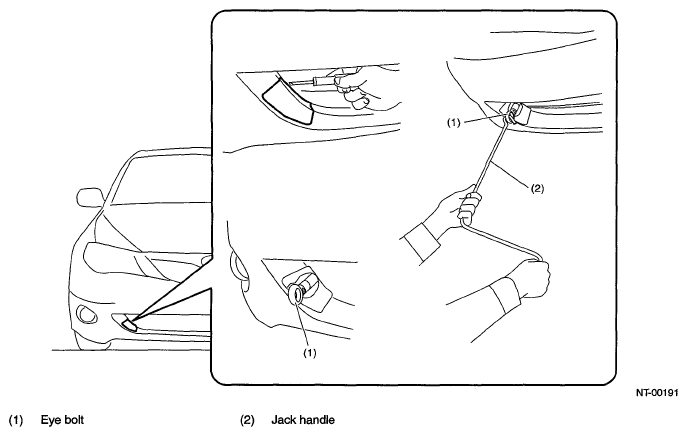

Fig 1: Identifying Jack Handle And Eye Bolt (Front)
G05659221Courtesy of SUBARU OF AMERICA, INC.

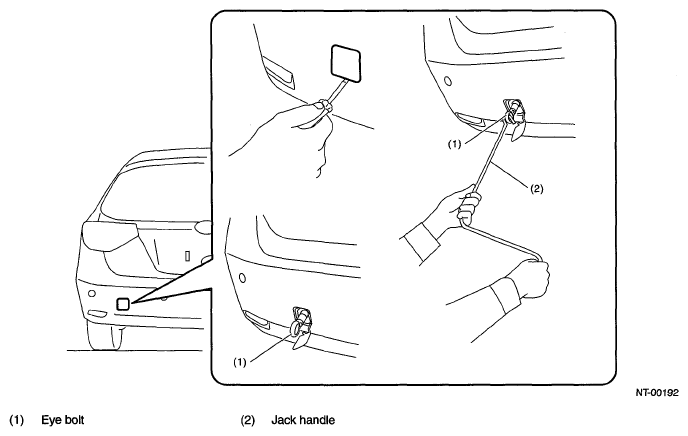

Fig 2: Identifying Jack Handle And Eye Bolt (Rear)
G05659222Courtesy of SUBARU OF AMERICA, INC.
CAUTION: When tightening the eye bolt using a wheel wrench, be careful not to scratch the bumper.
Fig 3: Identifying Wheel Wrench And Eye Bolt
G05659223Courtesy of SUBARU OF AMERICA, INC.
