Master Cylinder

WARNING: This page is about a different car, the 2007 Subaru Outback and 2007 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

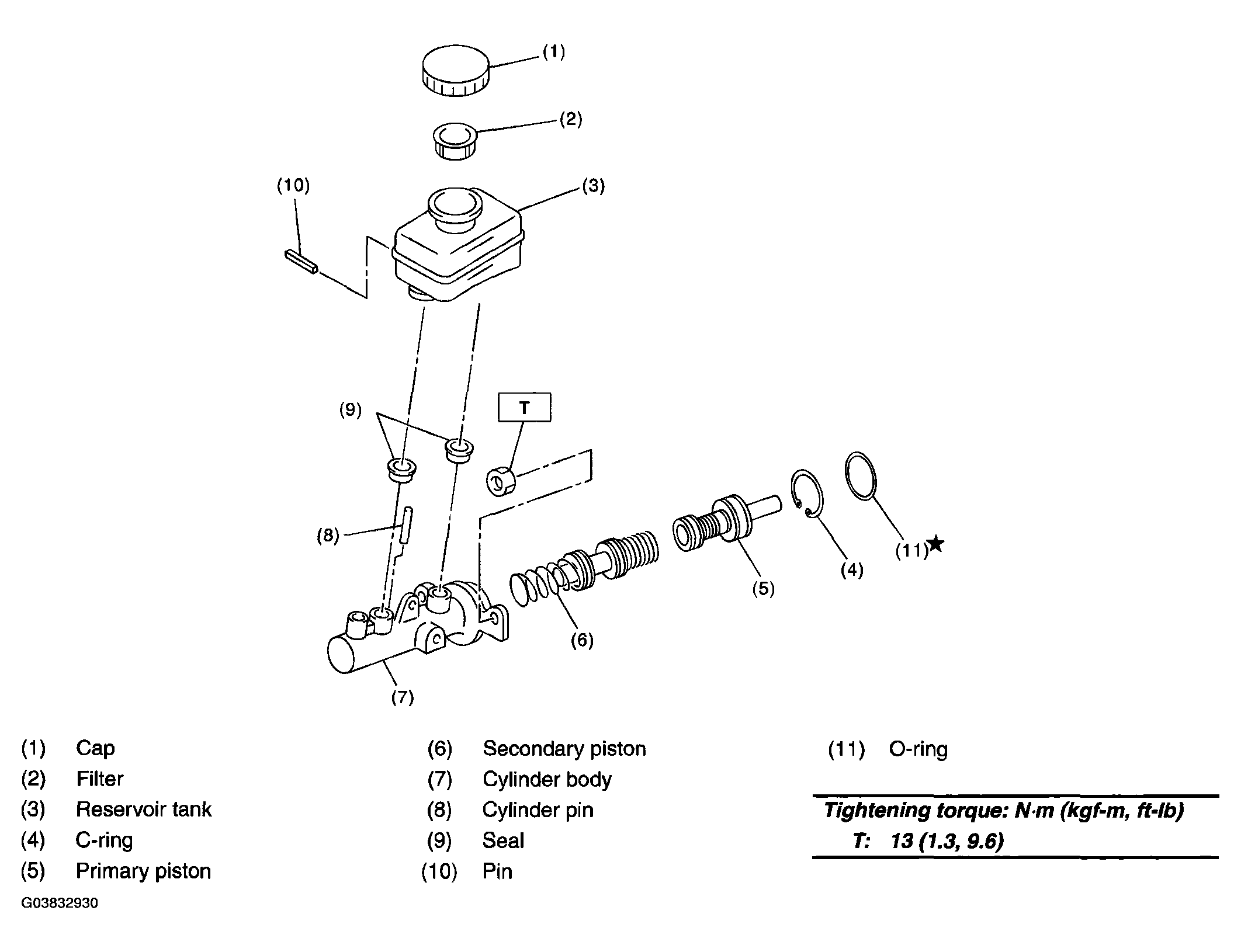

Fig 1: Exploded View Of Master Cylinder Components With Torque Specifications
G03832930Courtesy of SUBARU OF AMERICA, INC.
