Front Axle: Assembly

WARNING: This page is about a different car, the 2006 Subaru Outback and 2006 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Assemble the front hub unit bearing. < Ref. to , ASSEMBLY , Front Hub Unit Bearing. >
Place the disc cover between housing and front hub unit, and tighten the four bolts.

Tightening torque: 65 N.m (6.6 kgf-m, 47.9 ft-lb)

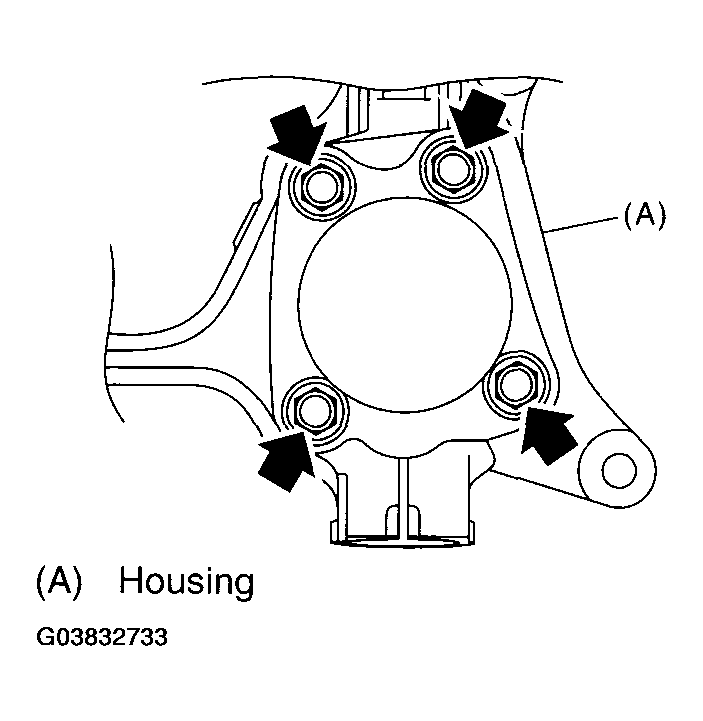

Fig 1: Locating Front Hub Unit Bearing And Disc Cover Bolts

Courtesy of SUBARU OF AMERICA, INC.

CAUTION:

Do not get closer the tool which charged magnetism to magnetic encorder.
Be careful not to damage the magnetic encoder.

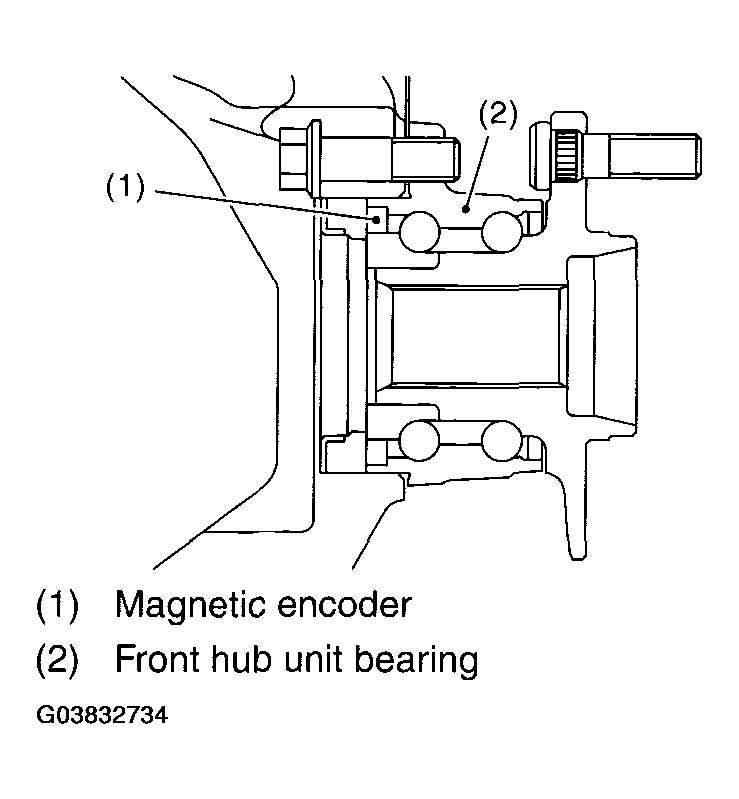

Fig 2: Precautions For Operating Magnetic Encoder

Courtesy of SUBARU OF AMERICA, INC.
