Front Axle: Disassembly

WARNING: This page is about a different car, the 2006 Subaru Outback and 2006 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the four bolts from housing, and remove the front hub unit bearing and disc cover.

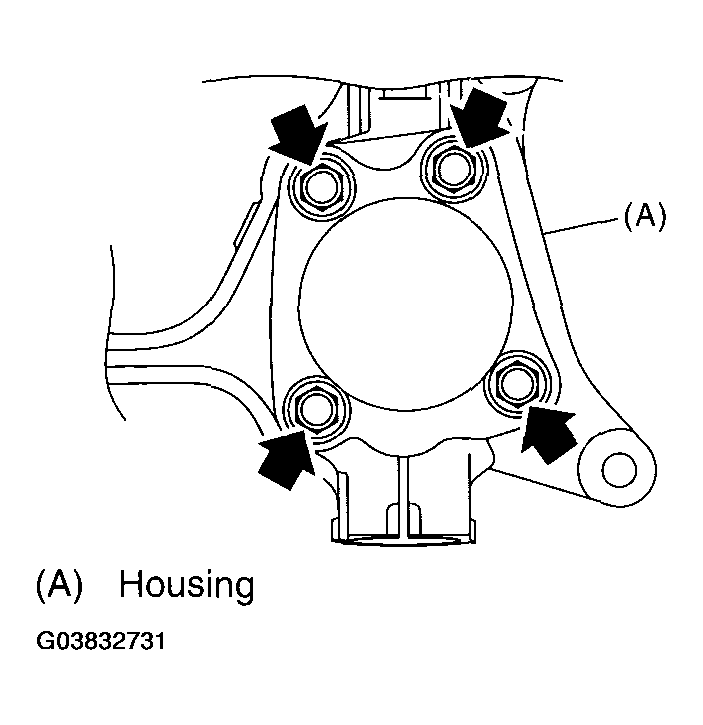

    Fig 1: Locating Front Hub Unit Bearing And Disc Cover Bolts
    G03832731Courtesy of SUBARU OF AMERICA, INC.
    CAUTION:
    • Do not get closer the tool which charged magnetism to magnetic encorder.
    • Be careful not to damage the magnetic encoder.

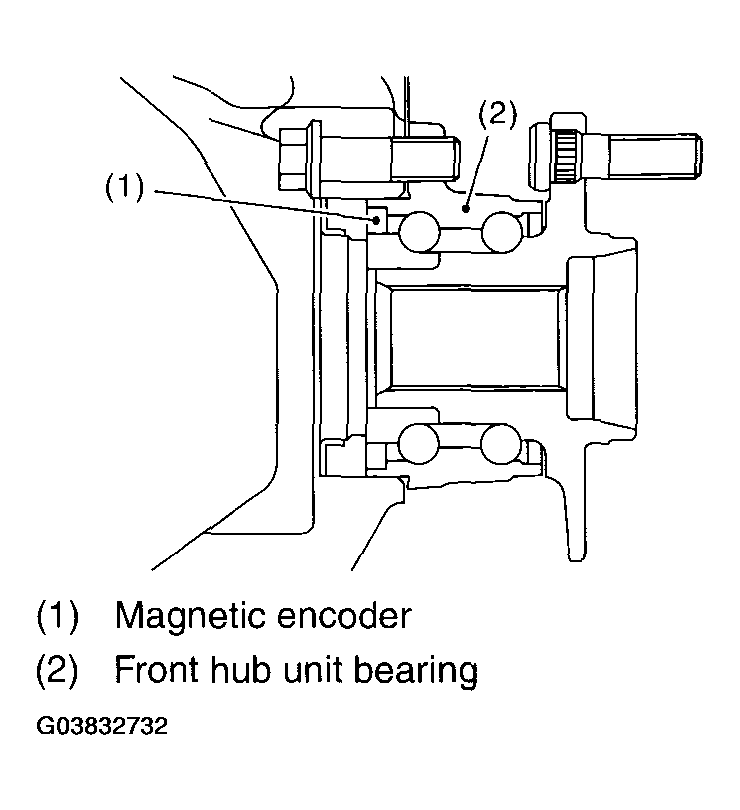

    Fig 2: Precautions For Operating Magnetic Encoder
    G03832732Courtesy of SUBARU OF AMERICA, INC.
  2. Disassemble the front hub unit bearing. < Ref. to , DISASSEMBLY , Front Hub Unit Bearing. >
