Sedan Model

WARNING: This page is about a different car, the 2007 Subaru Outback and 2007 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

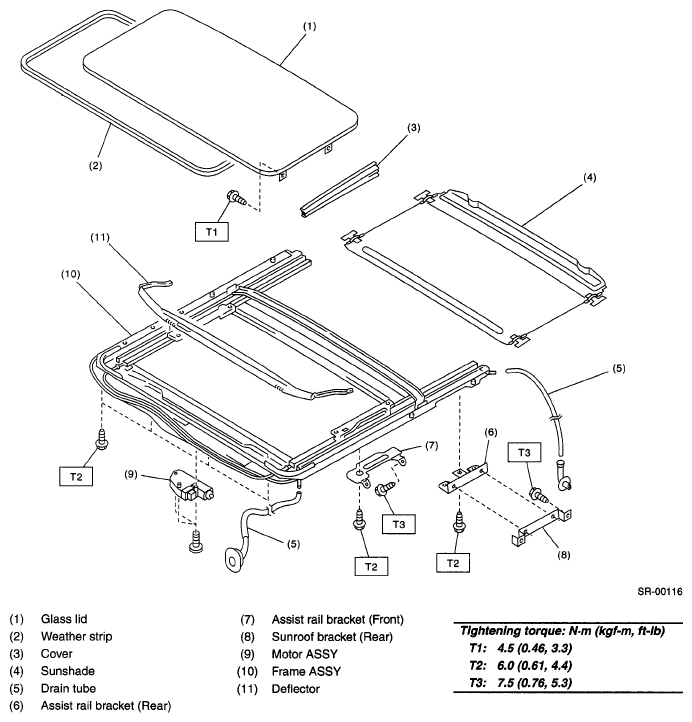

Fig 1: Sunroof Replacement Components With Torque Specifications (Sedan Model)
G05022836Courtesy of SUBARU OF AMERICA, INC.
