Section 70 (Differentials): General Description: Specifications: Classification

WARNING: This page is about a different car, the 2006 Subaru Outback and 2006 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Identification label positions are shown in Fig 1, for (T-Type), Fig 2, for (VA1-Type) & Fig 3, for (VA2-Type) . For details concerning identification, refer to IDENTIFICATION , General Info.

T-type

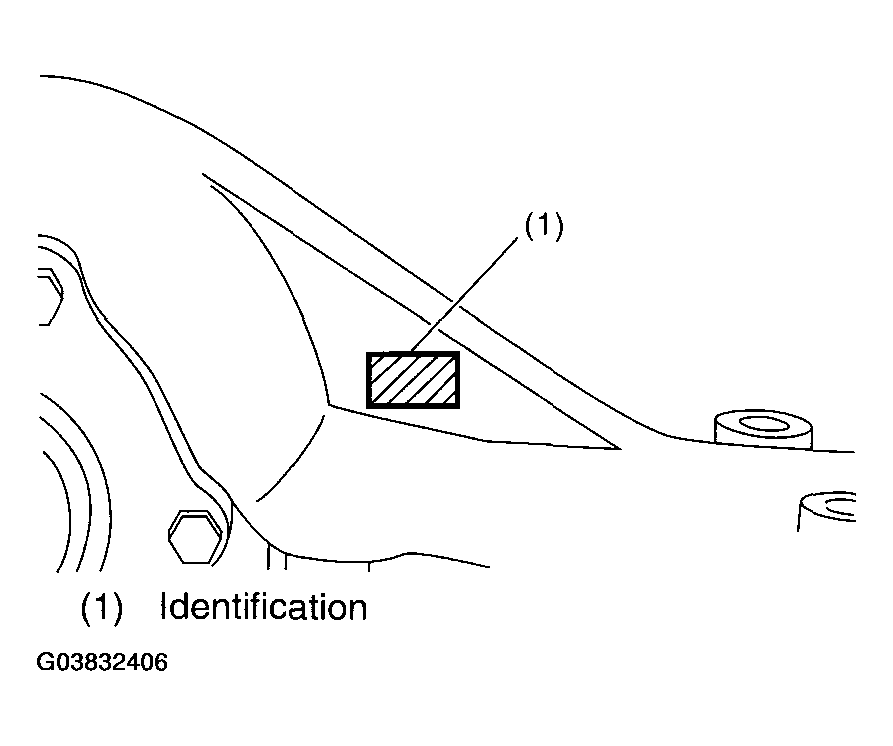

Fig 1: Locating Identification Label Positions (T-Type)

Courtesy of SUBARU OF AMERICA, INC.

VA1-type

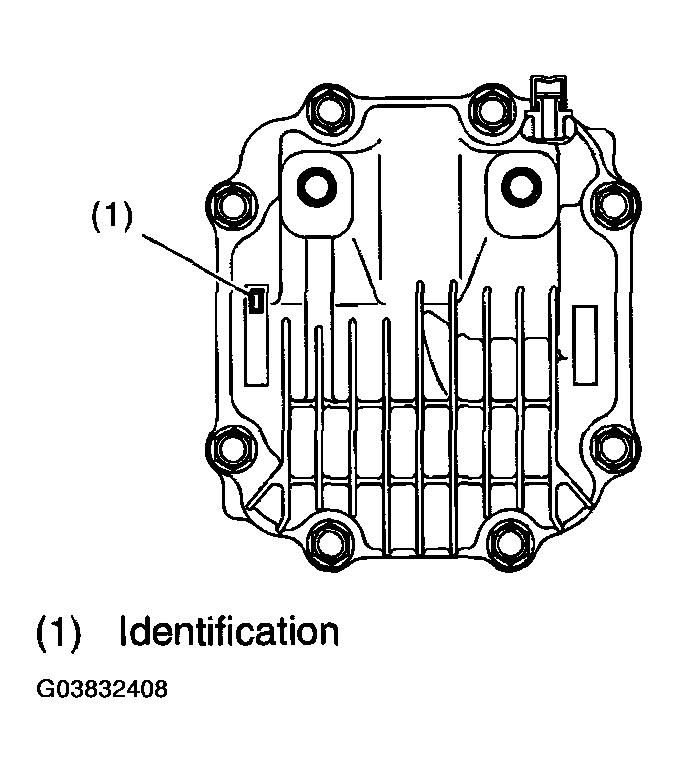

Fig 2: Locating Identification Label Positions (VA1-Type)

Courtesy of SUBARU OF AMERICA, INC.

VA2-type

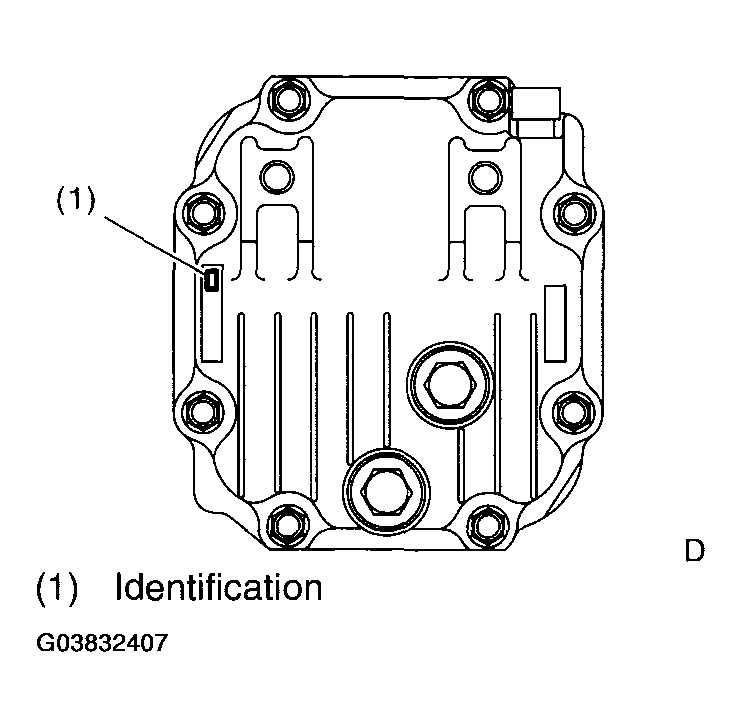

Fig 3: Locating Identification Label Positions (VA2-Type)

Courtesy of SUBARU OF AMERICA, INC.

NOTE: Each oil manufacturer has its base oil and additives. Thus, do not mix two or more brands.

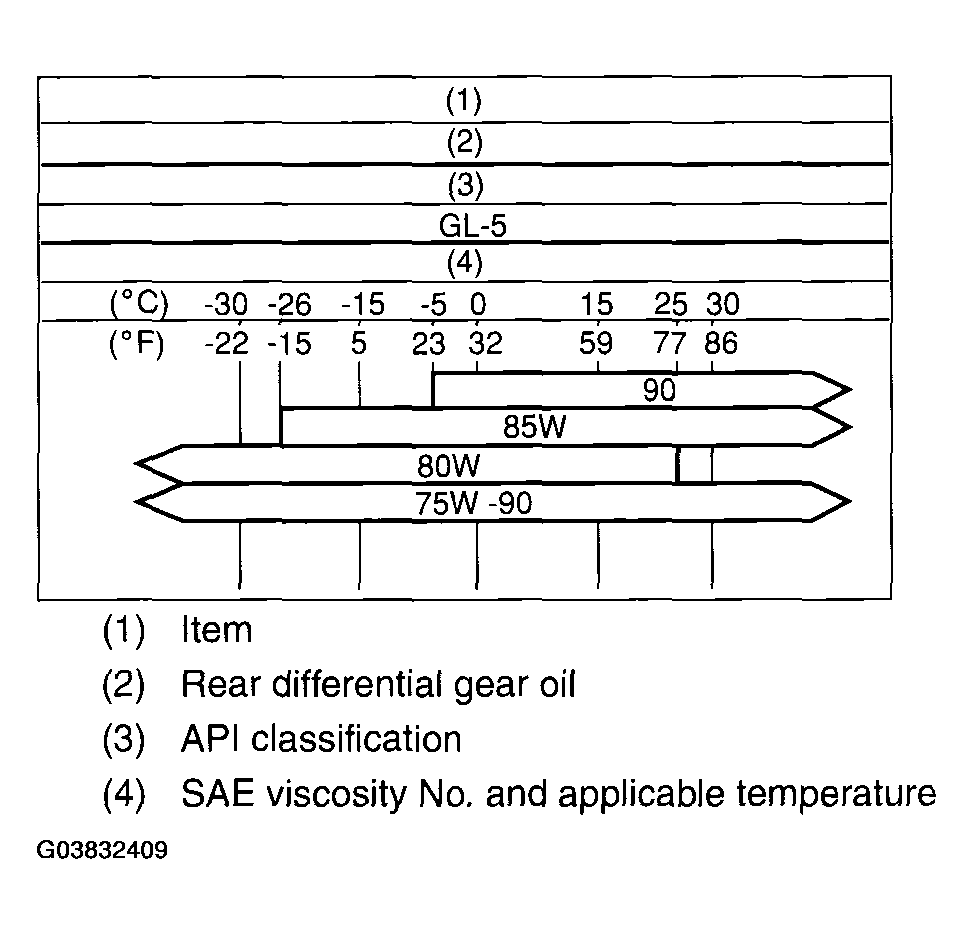

Fig 4: Rear Differential Gear Oil Specification Chart

Courtesy of SUBARU OF AMERICA, INC.
