Home >> Subaru >> 2008 >> Outback Base, Standard >> Repair and Diagnosis >> Suspension >> Wheel Alignment >> Front Suspension System >> General Description >> Components With Torque Specifications

Components With Torque Specifications

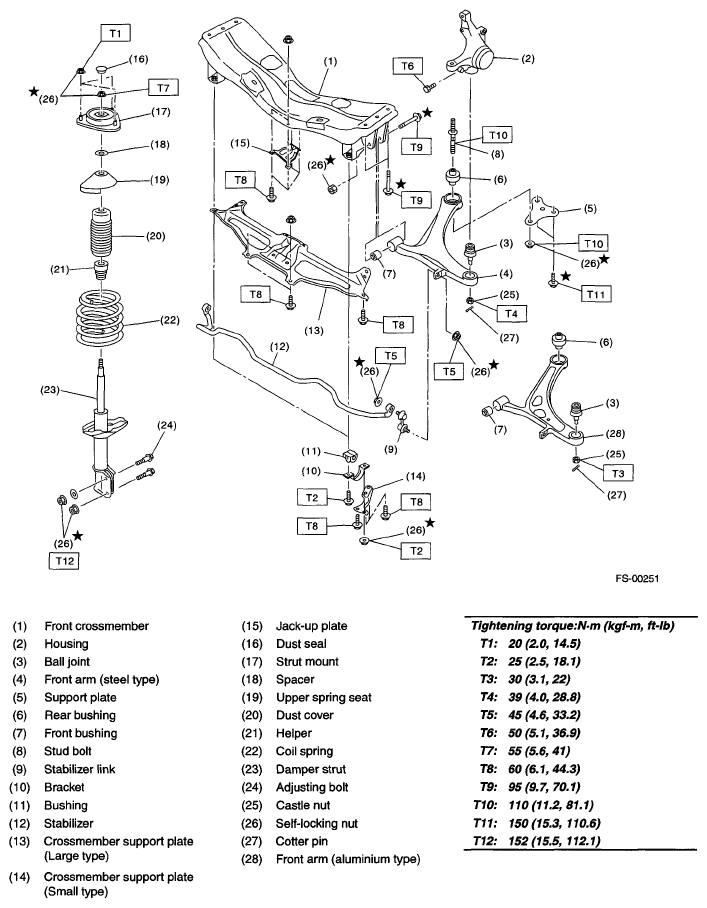

Fig 1: Exploded View Of Front Suspension With Torque Specifications
G05342807Courtesy of SUBARU OF AMERICA, INC.
