Wheel Alignment: Inspection: Notes

Check the following items before performing the wheel alignment measurement.

Check items before measuring wheel alignment:

• Tire inflation pressure
• Uneven wear of RH and LH tires, or difference of sizes
• Tire runout
• Excessive play and wear of ball joint
• Excessive play and wear of tie rod end
• Excessive play of wheel bearing
• Right and left wheel base imbalance
• Deformation and excessive play of steering link
• Deformation and excessive play of suspension parts

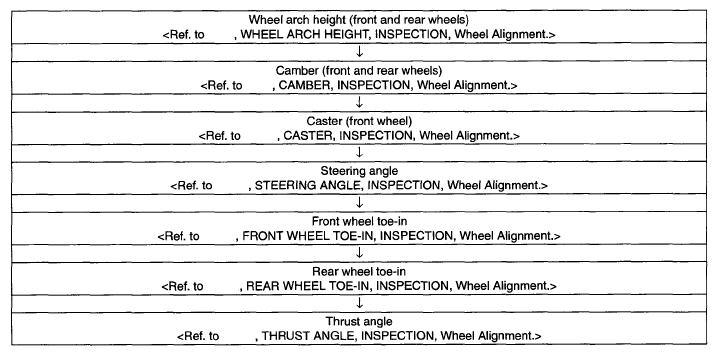

Check, adjust and measure the wheel alignment in accordance with the procedures indicated in the figure.
