Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Fuse & Relay Box (F/B) (B52) | Behind left end of dash. See Figure. |
| Main Fuse Box (M/B) (F35, F36 & F37) | Left side of engine compartment. See Figure. |
| Power Window Circuit Breaker (B41) | Behind left end of dash. See Figure. |
| Relay Block (B225) | Behind left end of dash. See Figure. |
| Relay Holder (F27) | Left side of engine compartment. See Figure. |

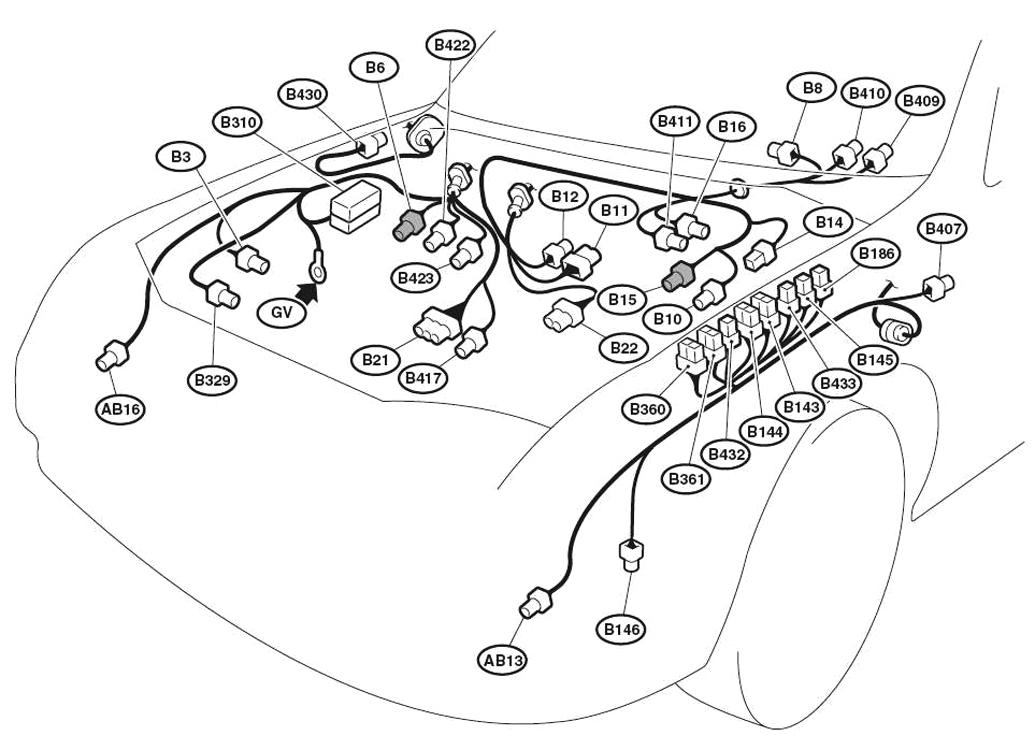

| SBF Holder (B432) | Left side of engine compartment. See Figure. |
| VDC Relay (B423) | Right rear of engine compartment. See Figure. |
