Fuel Injector

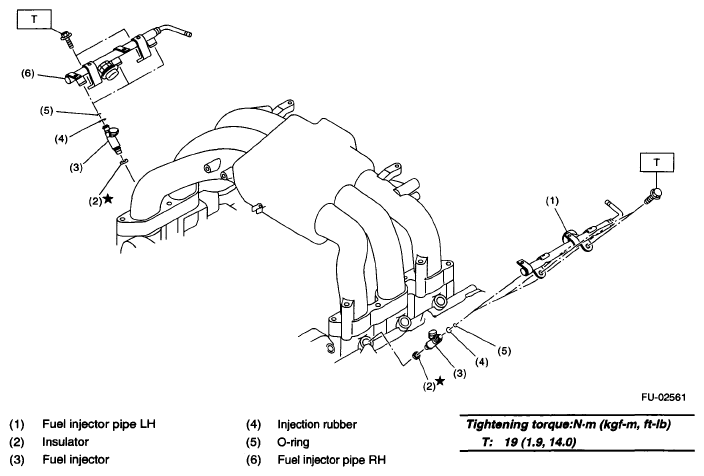

Fig 1: Exploded View Of Fuel Injector Replacement Components With Torque Specifications
G05667531Courtesy of SUBARU OF AMERICA, INC.
