Components With Torque Specifications: Sensor

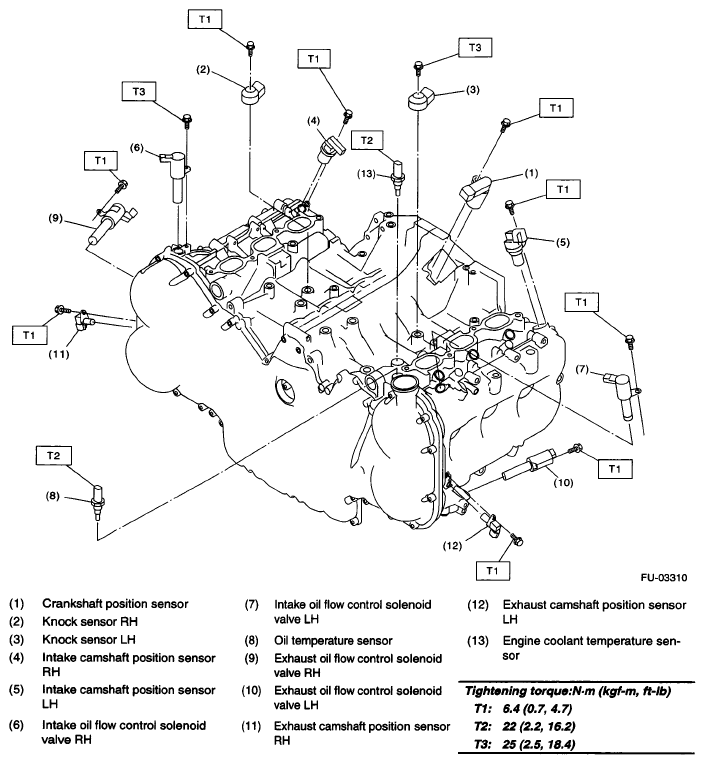

Fig 1: Exploded View Of Sensors With Torque Specifications
G05667533Courtesy of SUBARU OF AMERICA, INC.
