Home >> Subaru >> 2008 >> Tribeca Base >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Speed Control Systems >> General Description >> Components With Torque Specifications

Components With Torque Specifications

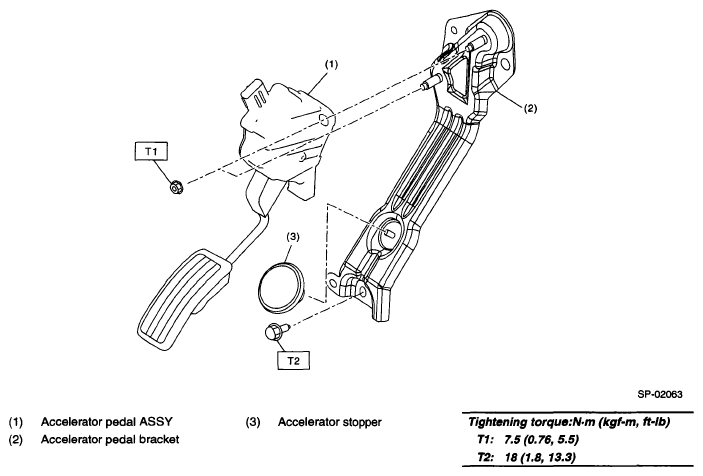

Fig 1: Exploded View Of Accelerator Pedal Components With Torque Specifications

G05668085

Courtesy of SUBARU OF AMERICA, INC.
