AT Shift Lock Control System: Location

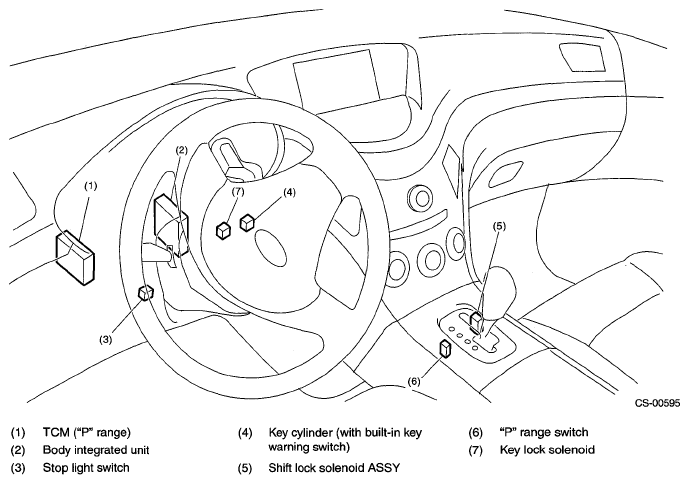

Fig 1: Identifying AT Shift Lock Control System Components (1 Of 2)
G05664270Courtesy of SUBARU OF AMERICA, INC.

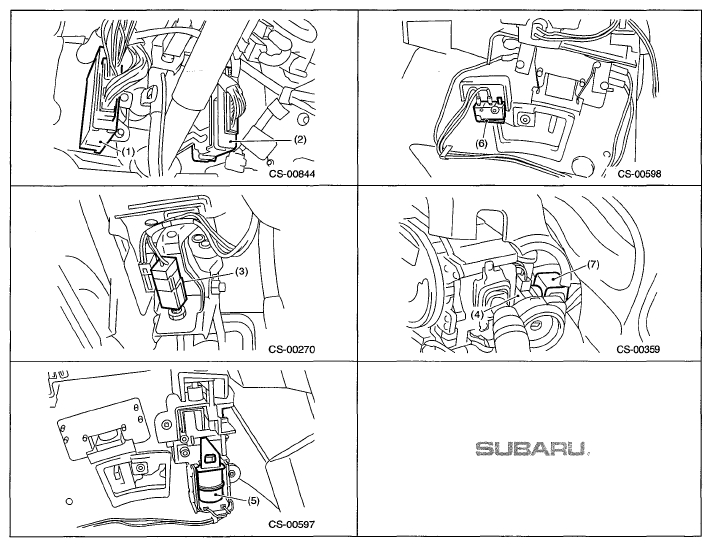

Fig 2: Identifying AT Shift Lock Control System Components (2 Of 2)
G05664271Courtesy of SUBARU OF AMERICA, INC.
