Fuel Filler Pipe: Assembly

  1. Tighten the nuts which secure the evaporation pipe assembly to the fuel filler pipe.

    Tightening torque:

    7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

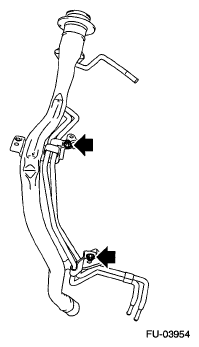

    Fig 1: Locating Evaporation Pipe Assembly Nut
    G05954918Courtesy of SUBARU OF AMERICA, INC.
  2. Install the shut valve to the fuel filler pipe. Refer to INSTALLATION , Shut Valve .
