Home >> Subaru >> 2009 >> Forester XT >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel Injection System (H4DOTC) >> General Description >> Components With Torque Specifications >> Air Intake System

Air Intake System

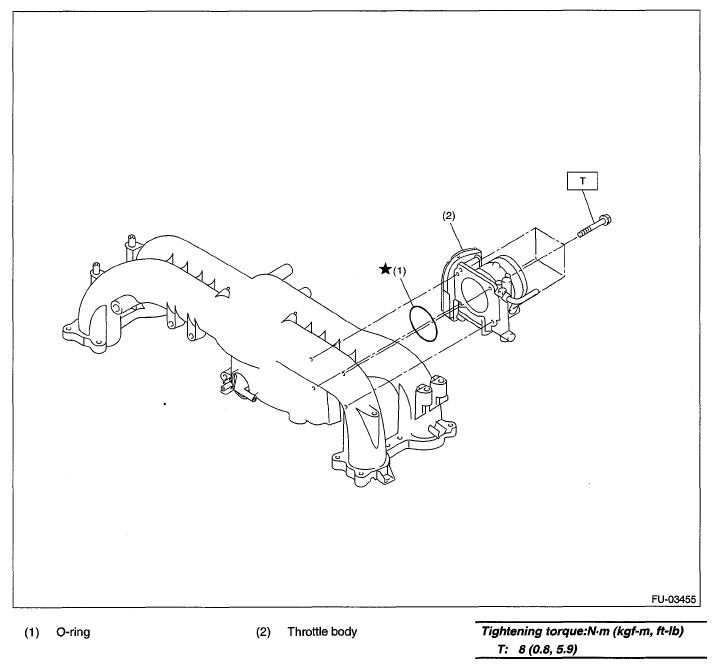

Fig 1: Air Intake System O-Ring And Throttle Body With Torque Specifications
G05954708Courtesy of SUBARU OF AMERICA, INC.
