Intake Manifold

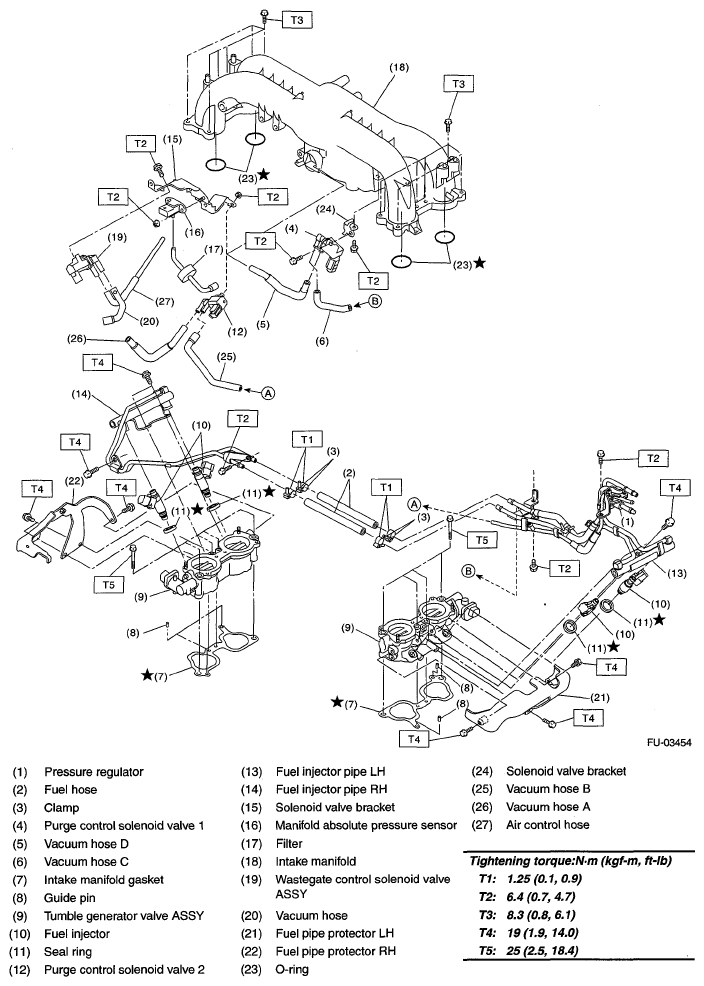

Fig 1: Exploded View Of Intake Manifold With Torque Specifications
G05954707Courtesy of SUBARU OF AMERICA, INC.
