General Description
>>
Components With Torque Specifications
>>
Power Assisted System
Power Assisted System
Hose and tank

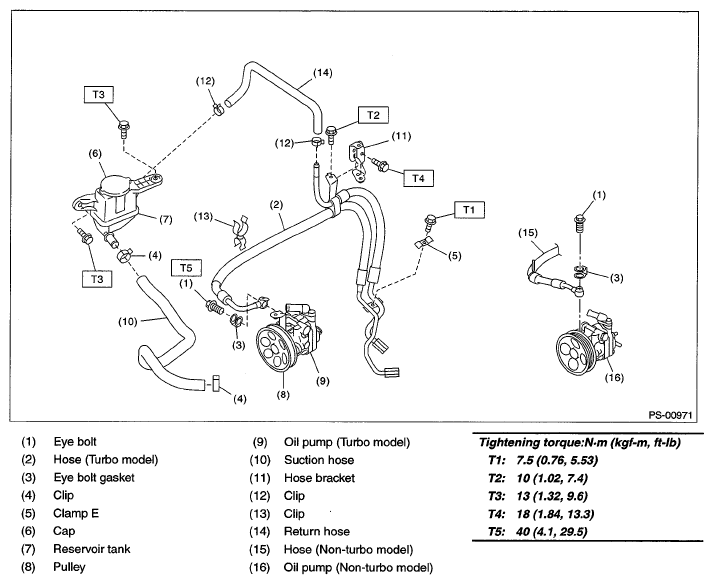

Fig 1: Hose And Tank Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Gearbox

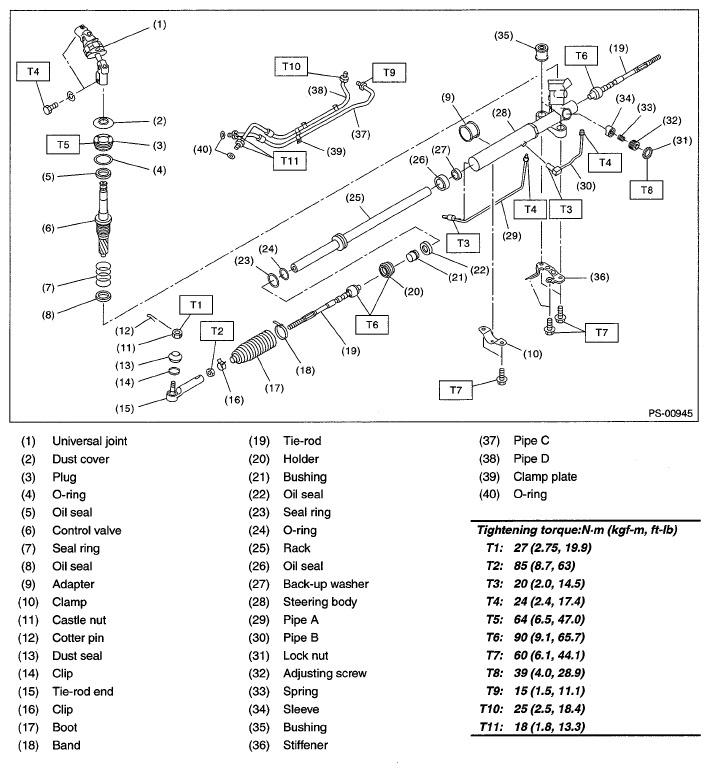

Fig 2: Gearbox Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
