Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transmission 4AT
>>
General Description
>>
Components With Torque Specifications
>>
Transmission Case And Control Device
Transmission Case And Control Device

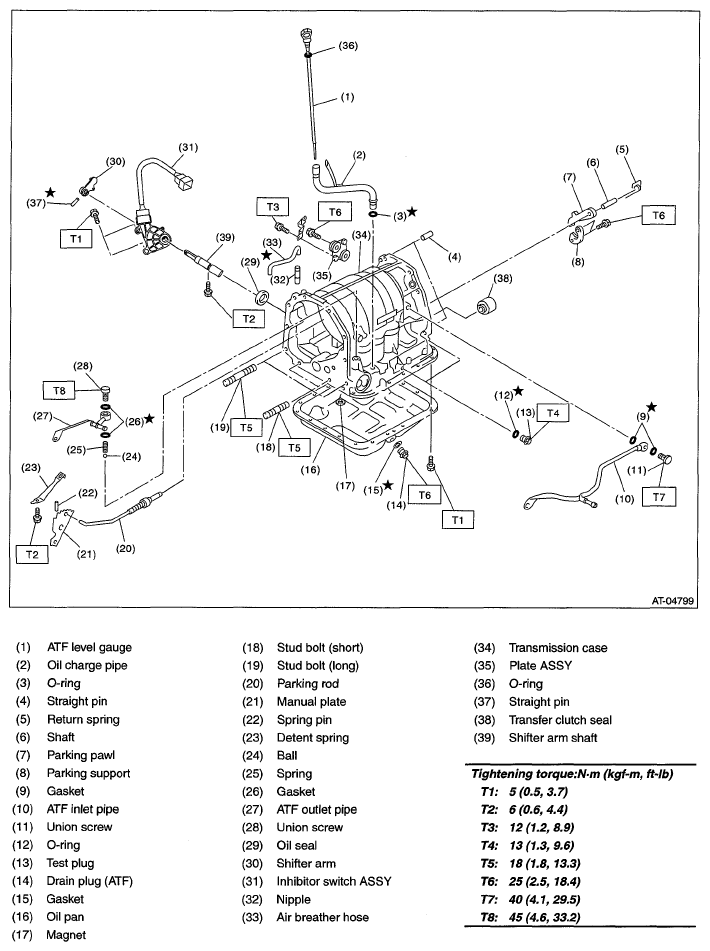

Fig 1: Exploded View Of Transmission Case And Control Device With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
