Fuel Line

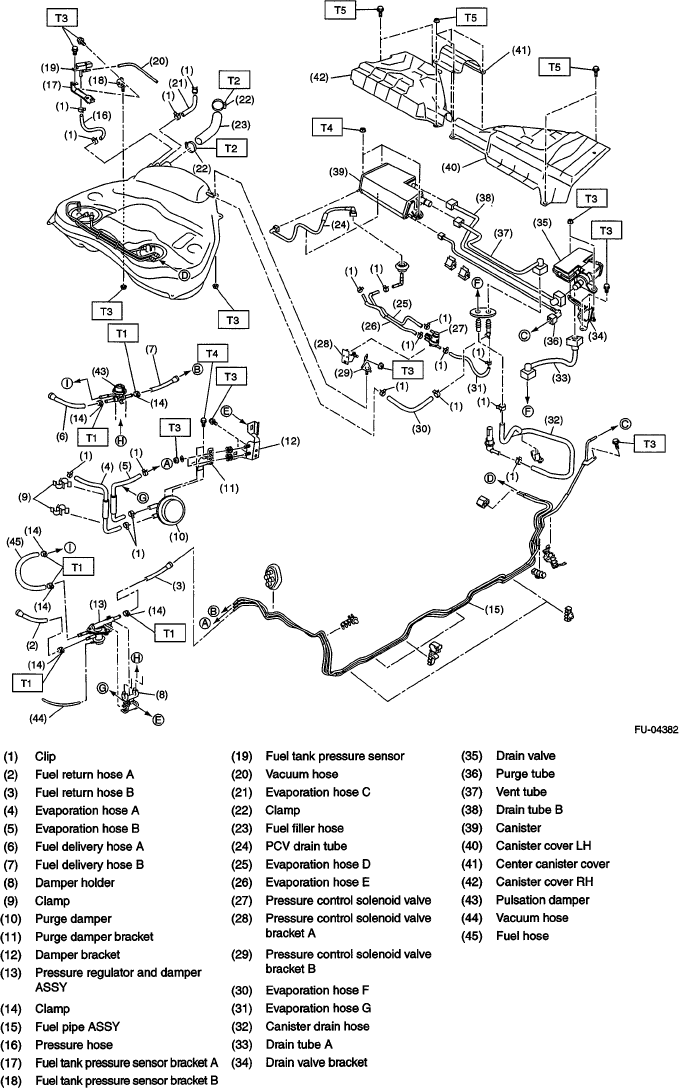

Fig 1: Exploded View Of Fuel Line Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 1.25 (0.1, 0.9)

T2: 2.5 (0.3, 1.8)

T3: 7.5 (0.8, 5.5)

T4: 8 (0.8, 5.9)

T5: 18 (1.8, 13.3)
