Identification Number & Label Locations

The V.I.N. (Vehicle Identification Numbers) is used to classify the vehicle.

• POSITIONING OF THE PLATE LABEL FOR IDENTIFICATION

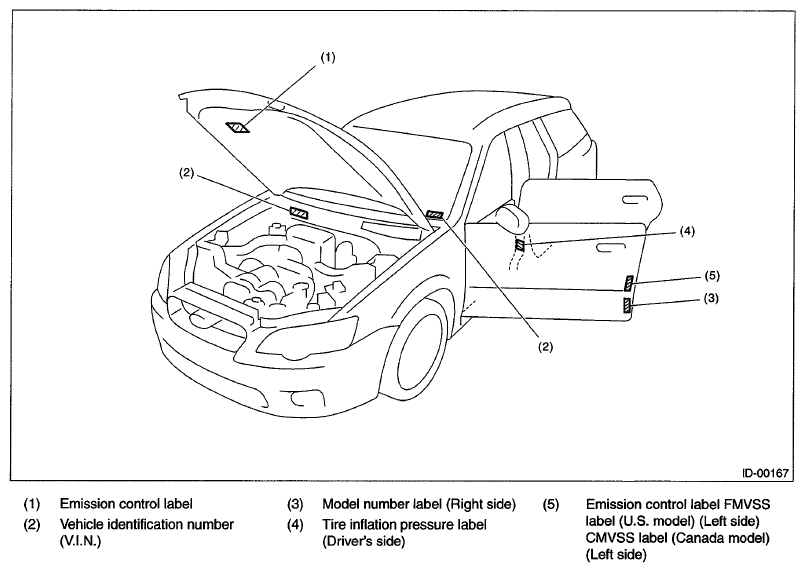

  Fig 1: Identifying Identification Label Number

  Courtesy of SUBARU OF AMERICA, INC.
• ENGINE

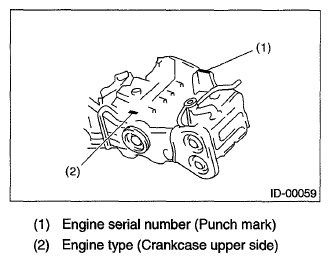

  Fig 2: Identifying Engine Serial Number

  Courtesy of SUBARU OF AMERICA, INC.
• AUTOMATIC TRANSMISSION

  4AT

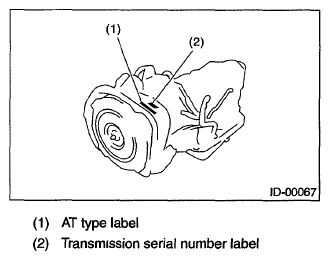

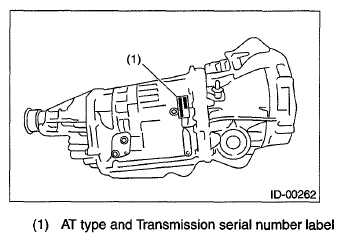

  Fig 3: Identifying Automatic Transmission Serial Number Label (4AT)

  Courtesy of SUBARU OF AMERICA, INC.

  5AT

  Fig 4: Identifying Automatic Transmission Serial Number Label (5AT)

  Courtesy of SUBARU OF AMERICA, INC.
• MANUAL TRANSMISSION

  5MT (non-turbo model)

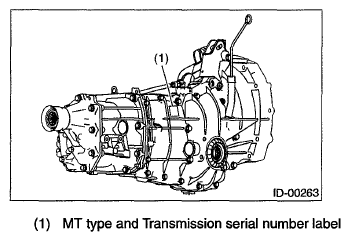

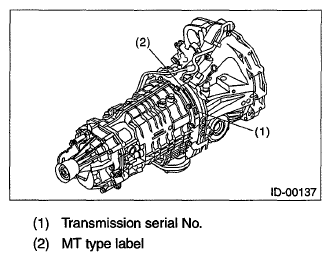

  Fig 5: Identifying Manual Transmission Serial Number Label - 5MT (Non-Turbo Model)

  Courtesy of SUBARU OF AMERICA, INC.

  5MT (turbo model)

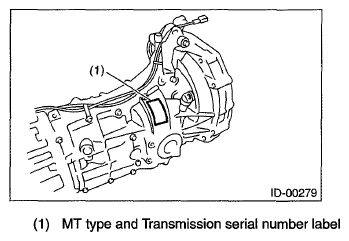

  Fig 6: Identifying Manual Transmission Serial Number Label - 5MT (Turbo Model)

  Courtesy of SUBARU OF AMERICA, INC.

  6MT

  Fig 7: Identifying Manual Transmission Serial Number Label - 6MT

  Courtesy of SUBARU OF AMERICA, INC.
• REAR DIFFERENTIAL

  T-TYPE

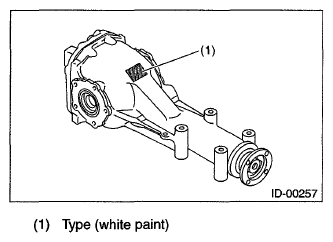

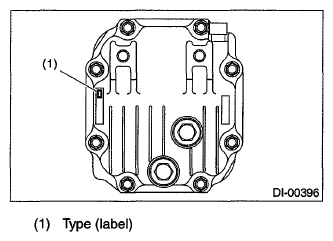

  Fig 8: Identifying Rear Differential Label - T-Type

  Courtesy of SUBARU OF AMERICA, INC.

  VA2-TYPE

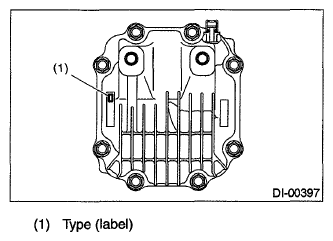

  Fig 9: Identifying Rear Differential Label - VA1-Type

  Courtesy of SUBARU OF AMERICA, INC.

  VA2-TYPE

  Fig 10: Identifying Rear Differential Label - VA2-Type

  Courtesy of SUBARU OF AMERICA, INC.
• MODEL NUMBER LABEL

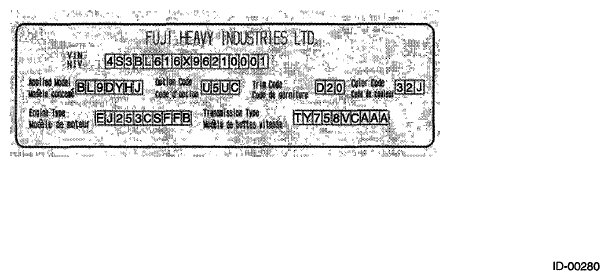

  Fig 11: Identifying Model Number Label

  Courtesy of SUBARU OF AMERICA, INC.
