LH Side

  1. Remove the collector cover.
  2. Release the fuel pressure. Refer to RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel.
  3. Open the fuel filler lid, and remove the fuel filler cap.
  4. Remove the battery. Refer to REMOVAL , Battery.
  5. Remove the generator harness from the fuel pipe protector LH.
  6. Remove the fuel pipe protector LH.
    Fig 1: Identifying Fuel Pipe Protector LH Bolts
    G05018408Courtesy of SUBARU OF AMERICA, INC.
  7. Disconnect the connector from fuel injector.
    Fig 2: Locating Fuel Injector Connectors
    G05018459Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the engine harness from the fuel injector pipe LH.
  9. Remove the bolt which holds fuel injector pipe onto cylinder head.

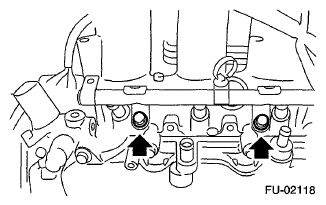

    Fig 3: Locating Fuel Injector Pipe LH Bolts
    G06336099Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the fuel injector while lifting up the fuel injector pipe.
