Rear Window Defogger System: Repair

  1. Clean the broken portion with alcohol or white gasoline.
  2. Mask both side of wire with thin film.
  3. Apply the conductive silver composition (DUPONT No. 4817) to the broken portion.

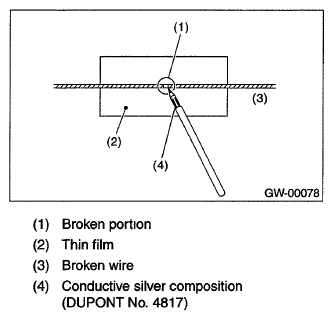

    Fig 1: Applying Conductive Silver Composition To Broken Portion
    G06340189Courtesy of SUBARU OF AMERICA, INC.
  4. After repair, check the wire.
