Home >> Subaru >> 2009 >> Outback Limited >> Repair and Diagnosis >> Brakes >> Traction Control >> Vehicle Dynamics Control (VDC) >> General Description >> Components With Torque Specifications >> Abs Wheel Speed Sensor

Abs Wheel Speed Sensor

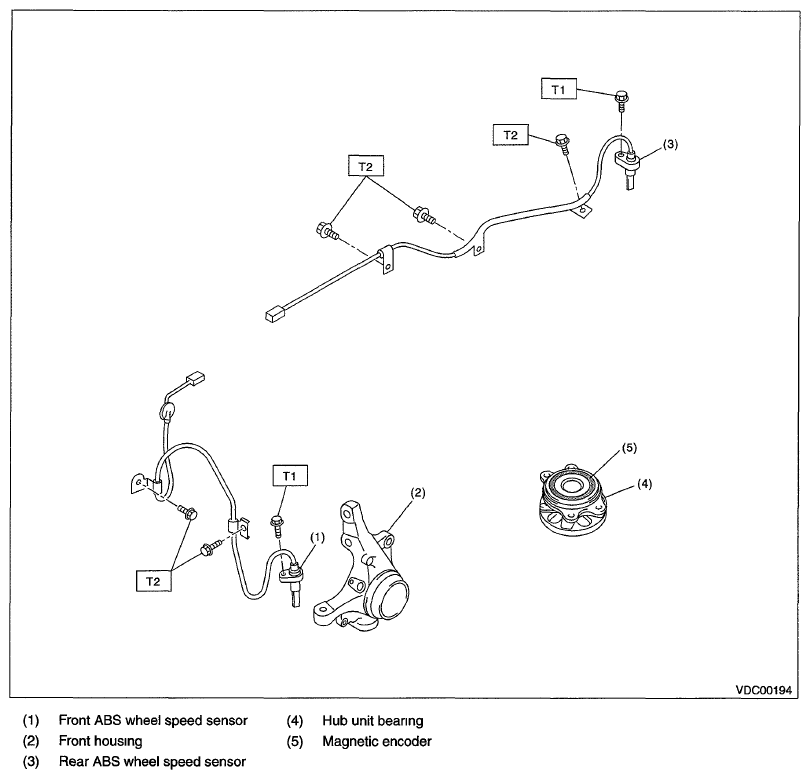

Fig 1: Identifying ABS Wheel Speed Sensor Components

G06339312

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5(0.76,5.5)

T2: 33(3.4,24)
