Front Axle: Assembly

Assemble the front hub unit bearing. Refer to ASSEMBLY , Front Hub Unit Bearing.
Place the disc cover between housing and front hub unit, and tighten the four bolts.
Tightening torque:

65 N.m (6.6 kgf-m, 47.9 ft-lb)

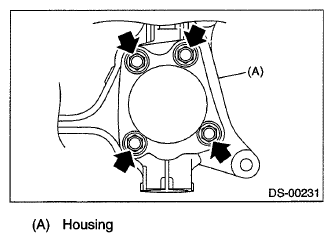

Fig 1: Locating Housing Bolts
Courtesy of SUBARU OF AMERICA, INC.
CAUTION:
- Do not get closer the tool which charged magnetism to magnetic encoder.
- Be careful not to damage the magnetic encoder.

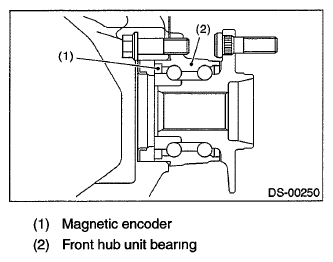

  Fig 2: Identifying Magnetic Encoder And Front Hub Unit Bearing
  Courtesy of SUBARU OF AMERICA, INC.
