Front Axle: Disassembly

  1. Remove the four bolts from the housing, and remove the front hub unit bearing and disc cover.

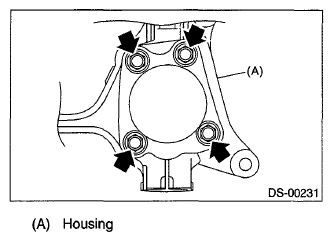

    Fig 1: Locating Housing Bolts
    G06339199Courtesy of SUBARU OF AMERICA, INC.
    CAUTION:
    • Do not get closer the tool which charged magnetism to magnetic encoder.
    • Be careful not to damage the magnetic encoder.

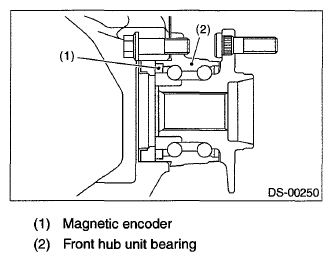

      Fig 2: Identifying Magnetic Encoder And Front Hub Unit Bearing
      G06339200Courtesy of SUBARU OF AMERICA, INC.
  2. Disassemble the front hub unit bearing. Refer to DISASSEMBLY , Front Hub Unit Bearing.
