Engine Controls - Engine (Diagnostics) (H4SO): Electrical Component Location: Location: Sensor

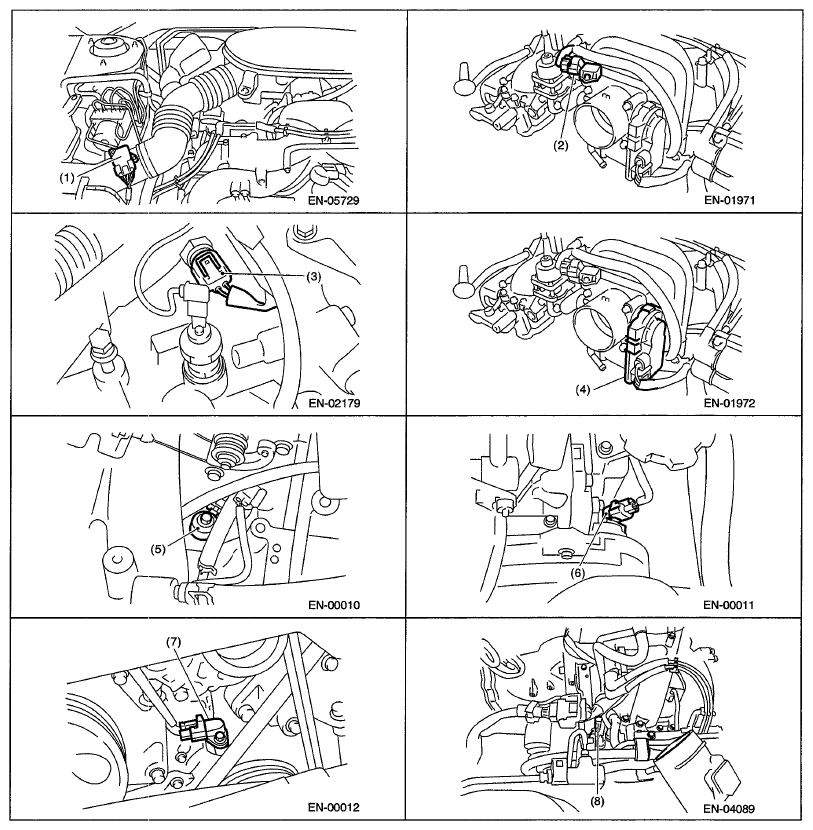

Fig 1: Identifying Sensor Components (1 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

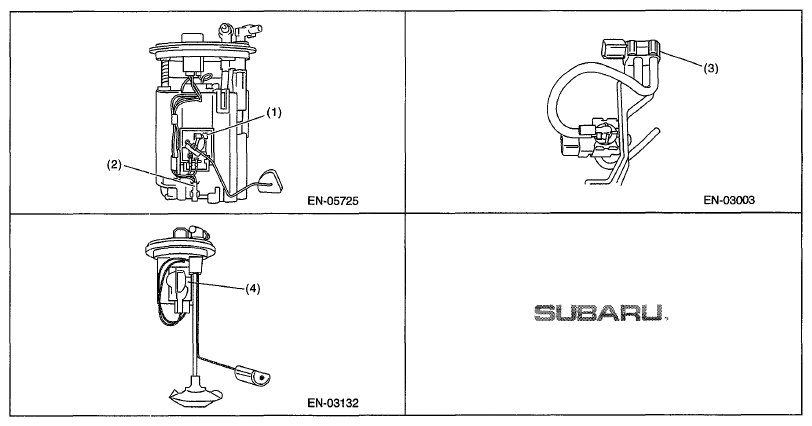

Fig 2: Identifying Sensor Components (2 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

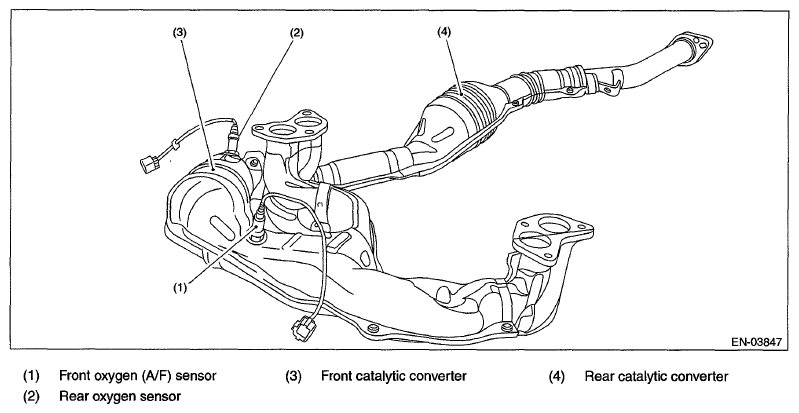

Fig 3: Identifying Sensor Components (3 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

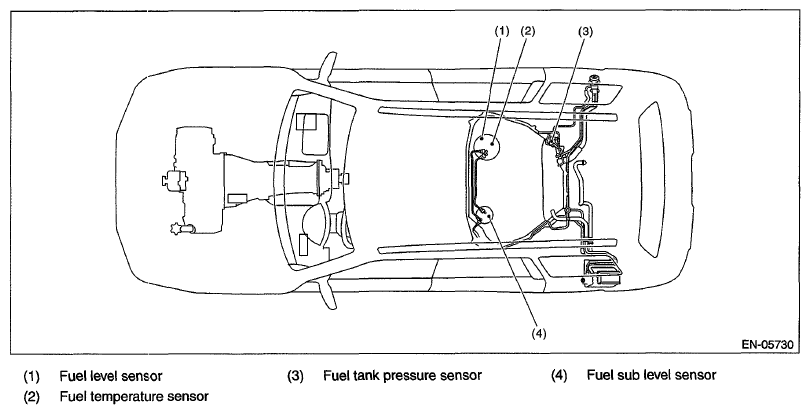

Fig 4: Identifying Sensor Components (4 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

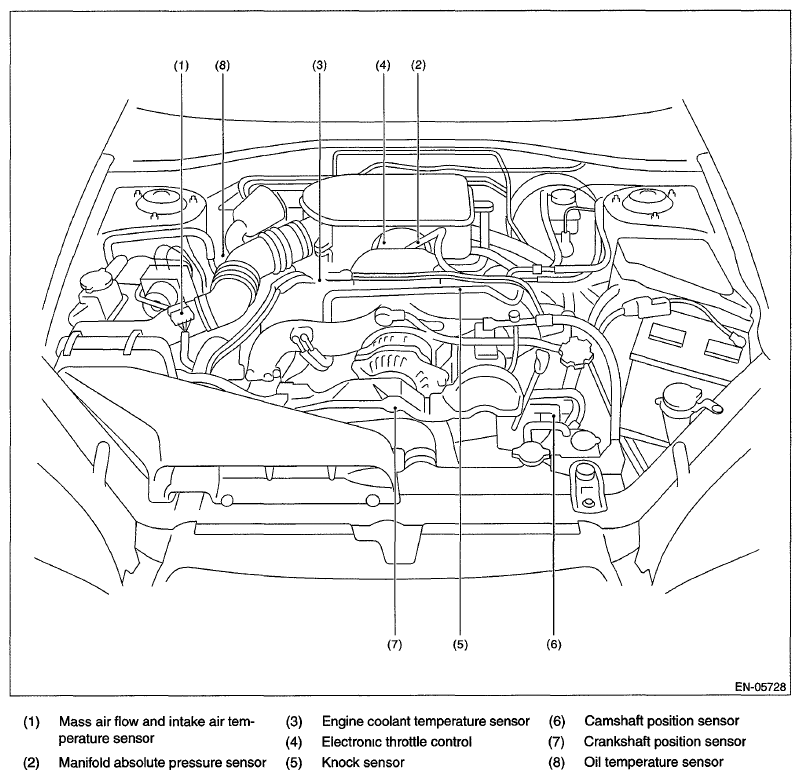

Fig 5: Identifying Sensor Components (5 Of 5)

Courtesy of SUBARU OF AMERICA, INC.
