Control Valve Assembly

Specified steering grease:

VALIANT GREASE M2 (Part No. 003608001)

1. Clean all parts and tools before reassembling.
2. Apply a coat of specified power steering fluid to the inner wall of valve housing.

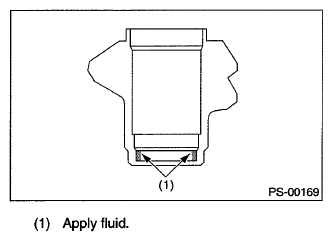

   Fig 1: Identifying Power Steering Fluid Applying Areas On Inner Wall Of Valve Housing

   Courtesy of SUBARU OF AMERICA, INC.
3. Apply grease to the oil seal.
4. Verify the direction of oil seal.
5. Using the ST and a press, install the oil seal and the bushing in valve housing.

   ST 34199AG090 INSTALLER & REMOVER

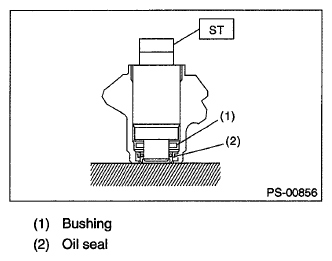

   Fig 2: Installing Oil Seal And Bushing In Valve Housing Using ST 34199AG090 Installer & Remover

   Courtesy of SUBARU OF AMERICA, INC.
6. Apply vinyl tape to the groove of pinion.
7. Install the back-up ring and oil seal to pinion, and then remove the vinyl tape.

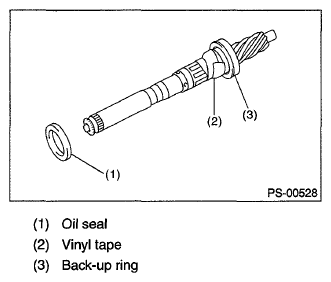

   Fig 3: Identifying Vinyl Tape, Oil Seal And Back-Up Ring

   Courtesy of SUBARU OF AMERICA, INC.
8. Attach the ST to pinion, and install the seal ring.

   ST 34199AG020 GUIDE

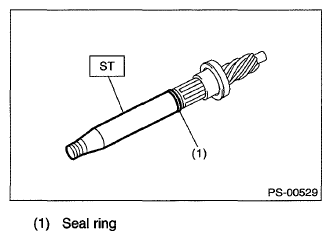

   Fig 4: Identifying ST 34199AG020 Guide And Seal Ring

   Courtesy of SUBARU OF AMERICA, INC.
9. Remove the ST GUIDE, and form the seal ring properly using ST FORMER.

   ST 34199AG070 FORMER

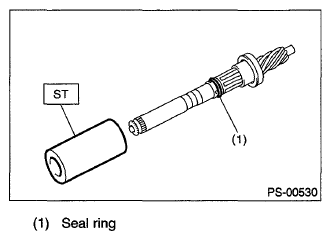

   Fig 5: Identifying ST 34199AG070 Former And Seal Ring

   Courtesy of SUBARU OF AMERICA, INC.
10. Rut vinyl tape around pinion shaft spline to protect oil seal from damage.
11. Install the valve to pinion, and install the snap ring.

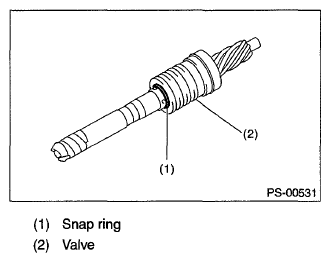

    Fig 6: Identifying Snap Ring And Valve

    Courtesy of SUBARU OF AMERICA, INC.
12. Attach the pinion and valve assembly into the valve housing.

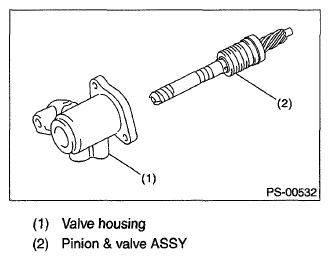

    Fig 7: Identifying Valve Housing With Pinion And Valve Assembly

    Courtesy of SUBARU OF AMERICA, INC.
13. Using a press, push the outer race of bearing and press-fit the pinion & valve assembly into housing.

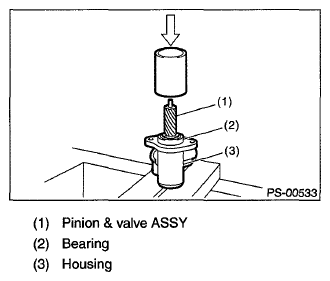

    Fig 8: Pressing Pinion & Valve Assembly Into Housing

    Courtesy of SUBARU OF AMERICA, INC.
14. Apply the specified grease to dust cover.
15. Install the dust cover on valve assembly.
    CAUTION: Be sure to install the dust cover to groove of shaft.

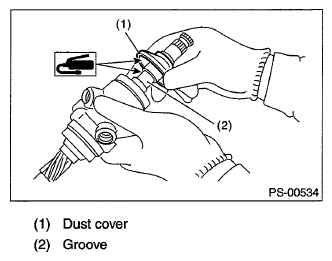

    Fig 9: Installing Dust Cover To Groove Of Shaft

    Courtesy of SUBARU OF AMERICA, INC.
16. Apply the genuine grease to the pinion gear and bearing of valve assembly.
    Fig 10: Identifying Grease Applying Areas On Pinion Gear And Bearing Of Valve Assembly

    Courtesy of SUBARU OF AMERICA, INC.
17. Install new O-ring to valve assembly.

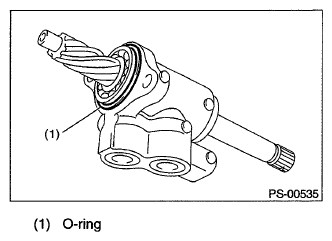

    Fig 11: Identifying O-Ring On Valve Assembly

    Courtesy of SUBARU OF AMERICA, INC.
18. Insert the valve assembly into place while facing the rack teeth toward pinion.
    Fig 12: Inserting Valve Assembly

    Courtesy of SUBARU OF AMERICA, INC.
19. Tighten the bolts alternately to secure the valve assembly.

    Tightening torque:

    20 N.m (2.0 kgf-m, 14.8 ft-lb)

    CAUTION: Be sure to alternately tighten the bolts.
20. Apply liquid gasket to 1/3 or more of entire perimeter of adjusting screw thread.

    Liquid gasket:

    THREE BOND 1141 (Part No. 004403006)

21. Apply a coat of grease to the sliding surface of sleeve and seating surface of spring, and then insert the sleeve into steering body.

    Charge the adjusting screw with grease, and then insert the spring into adjusting screw. Then install on the steering body.

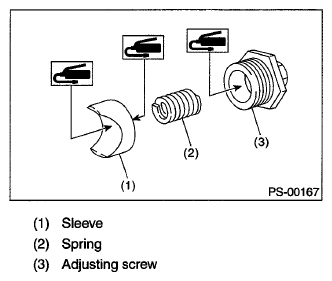

    Fig 13: Identifying Grease Applying Areas On Sliding Surface Of Sleeve And Seating Surface Of Spring

    Courtesy of SUBARU OF AMERICA, INC.
22. Tighten the adjusting screw to the specified torque, then loosen it.

    Tightening torque:

    25 N.m (2.5 kgf-m, 18.4 ft-lb)

23. Tighten the adjusting screw to the specified torque, then loosen it 20°.

    Tightening torque:

    3.9 N.m (0.4 kgf-m, 2.9 ft-lb)

24. Adjust the adjustment screw until the rotational resistance of gearbox is within specifications. Refer to TURNING RESISTANCE OF GEARBOX , INSPECTION, Steering Gearbox.
25. Apply liquid gasket to lock nut and install it into adjusting screw. While holding the adjusting screw with wrench, tighten the lock nut using ST.

    Liquid gasket:

    THREE BOND 1141

    ST 926230000 SPANNER

    Tightening torque (lock nut):

    25 N.m (2.5 kgf-m, 18.4 ft-lb)

    NOTE: Hold the adjusting screw with a wrench to prevent it from turning while tightening lock nut.
26. Remove the gearbox from ST.

    ST1 926200000 STAND

    ST2 34199AG000 BOSS D

27. Install the four pipes on gearbox.
    1. Connect the pipes A and B to gearbox.

       Tightening torque:

       Refer to POWER ASSISTED SYSTEM , COMPONENT, General Description.

    2. Connect the pipes C and D to gearbox.

       Tightening torque:

       Pipe C: 37 N.m (3.8 kgf-m, 27.3 ft-lb)

       Pipe D:

       29 N.m (3.0 kgf-m, 21.4 ft-lb)

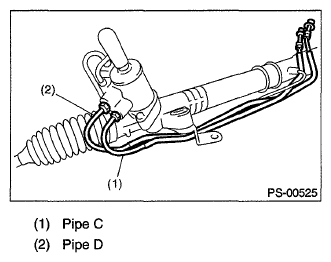

       Fig 14: Identifying Pipes C And D

       Courtesy of SUBARU OF AMERICA, INC.
