Front Link: Installation

Support the rear arm horizontally using a transmission jack.
Using new self-locking nuts, install the front link.

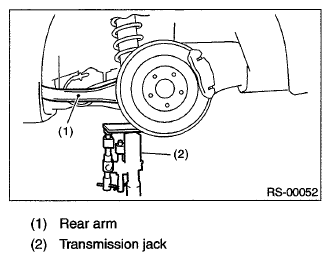

Fig 1: Supporting Rear Arm Horizontally Using Transmission Jack
Courtesy of SUBARU OF AMERICA, INC.

CAUTION: Install the front link with the protruding side facing the front side of the vehicle.

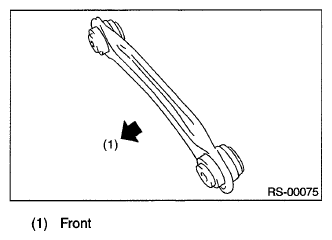

Fig 2: Identifying Front Link
Courtesy of SUBARU OF AMERICA, INC.

NOTE: Inspect the wheel alignment and adjust if necessary.

Tightening torque:

57 N.m (5.8 kgf-m, 42 ft-lb)
