Shock Absorber

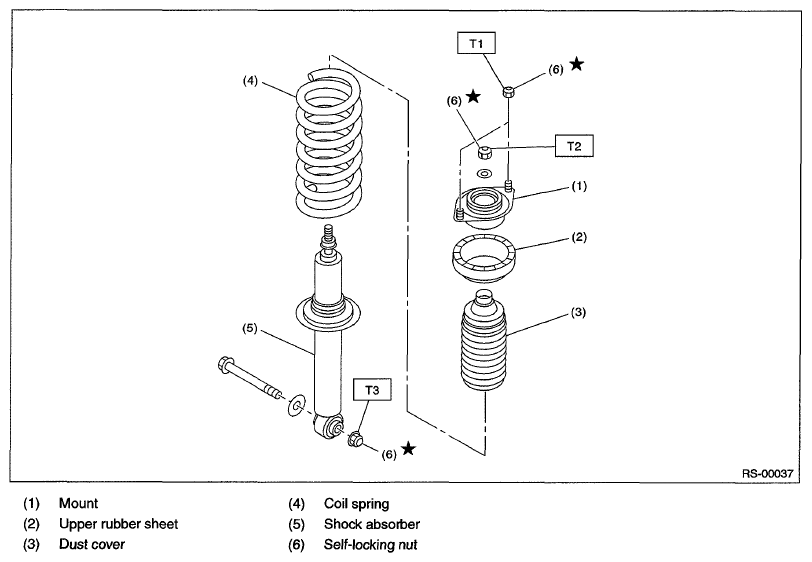

Fig 1: Exploded View Of Shock Absorber

G06338727

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 30 (3.1, 22.4)

T2: 35 (3.6, 26)

T3: 62 (6.3, 46)
