Extension Case: Removal

  1. Remove the transmission assembly. Refer to REMOVAL , Automatic Transmission Assembly.
  2. Remove the rear vehicle speed sensor.

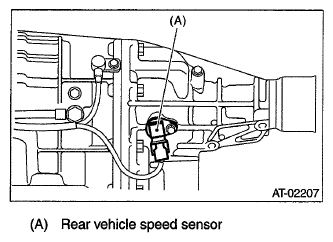

    Fig 1: Identifying Rear Vehicle Speed Sensor
    G06337245Courtesy of SUBARU OF AMERICA, INC.
  3. Separate the transmission case and extension case section.
    Fig 2: Identifying Extension Case Mounting Bolts
    G05661769Courtesy of SUBARU OF AMERICA, INC.
