Differential Gear

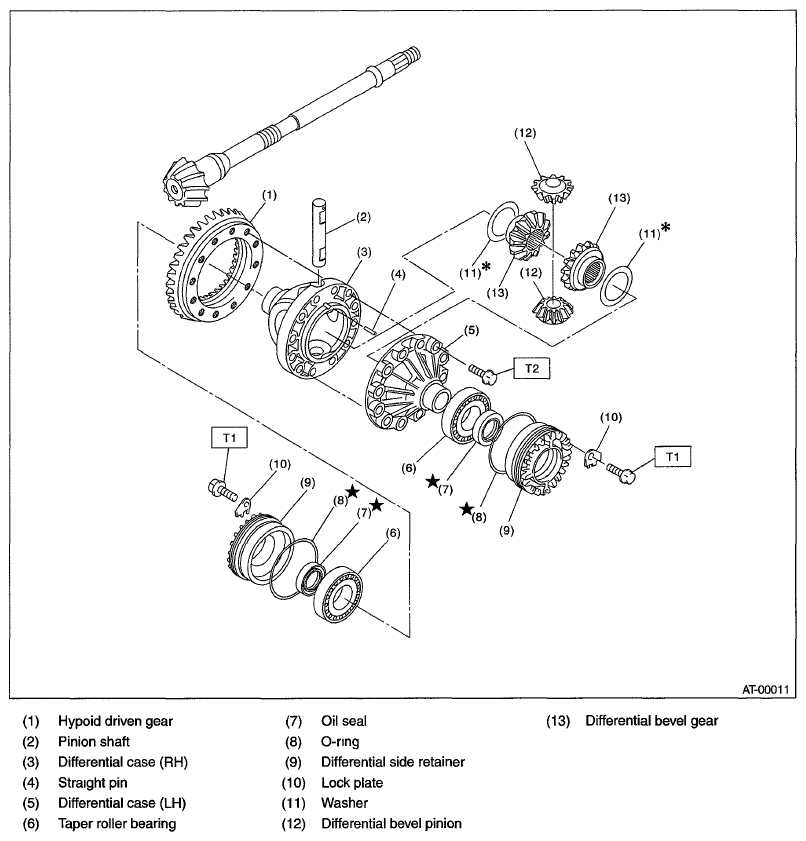

Fig 1: Exploded View Of Differential Gear

G06337082

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 25 (2.5,18.4)

T2: 62(6.3,45.7)
