Reduction Gear Mp-T Model

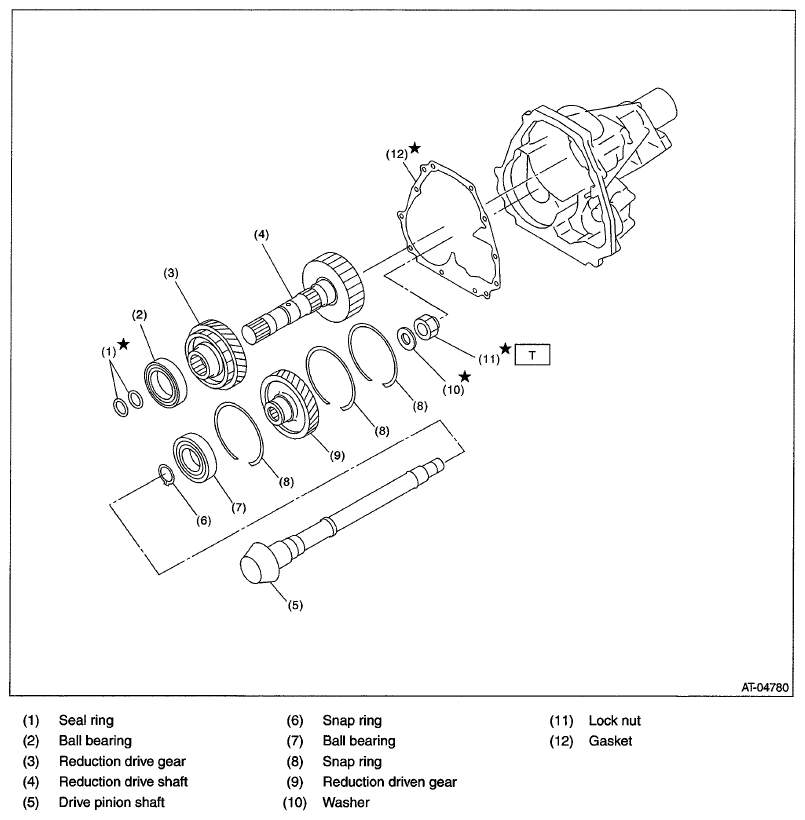

Fig 1: Exploded View Of Reduction Gear (MP-T Model)

G06337081

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 100 (10.2, 73.8)
