Inhibitor Switch: Removal

Set the vehicle on a lift.
Set the select lever to "N" range.
Lift up the vehicle.
Remove the front and center exhaust pipes. Refer to REMOVAL , Front Exhaust Pipe.
Remove the snap pin and washer from the shifter arm.

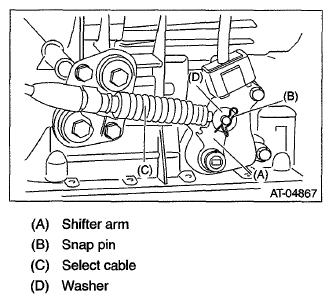

Fig 1: Identifying Shifter Arm, Snap Pin And Washer
Courtesy of SUBARU OF AMERICA, INC.
Remove the plate assembly from the transmission case.

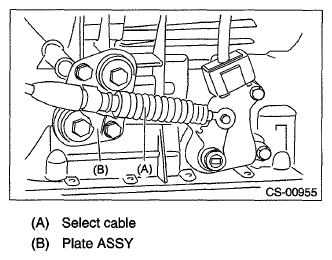

Fig 2: Identifying Select Cable And Plate Assy
Courtesy of SUBARU OF AMERICA, INC.
Remove the spring pin and remove the shifter arm.
ST 398791600 REMOVER

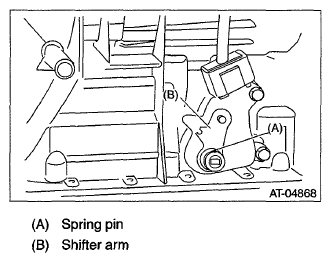

Fig 3: Removing Shifter Arm Using ST 398791600 Remover
Courtesy of SUBARU OF AMERICA, INC.
Remove the two inhibitor switch securing bolts.

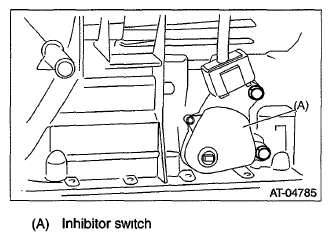

Fig 4: Identifying Inhibitor Switch With Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the inhibitor switch from the transmission.

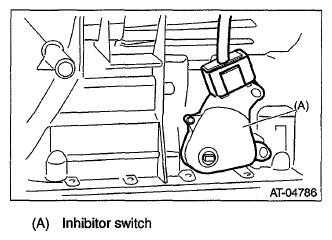

Fig 5: Identifying Inhibitor Switch
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the inhibitor switch harness connector from the inhibitor switch.
