Reduction Drive Gear: Assembly

  1. Press-fit the reduction drive gear to shaft.
  2. Press-fit the new ball bearing into reduction drive gear.
  3. Apply Vaseline onto the seal ring outer surface and shaft grooves.
  4. Apply ATF to new seal rings and install them.

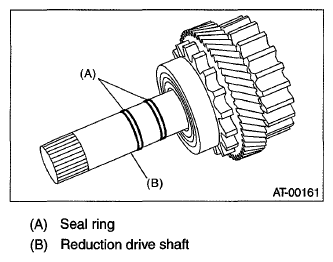

    Fig 1: Identifying Seal Ring And Reduction Drive Shaft
    G06337286Courtesy of SUBARU OF AMERICA, INC.
