Reduction Drive Gear: Installation

  1. Install the reduction drive gear assembly.
    NOTE: Press-fit it to the bottom of bearing shoulder completely.

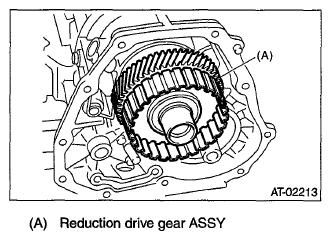

    Fig 1: Identifying Reduction Drive Gear Assembly
    G06337282Courtesy of SUBARU OF AMERICA, INC.
  2. Install the reduction driven gear. Refer to INSTALLATION , Reduction Driven Gear.
  3. Join the transmission case and the extension case, and then install the rear vehicle speed sensor. Refer to INSTALLATION , Extension Case.
  4. Install the transmission assembly to the vehicle. Refer to INSTALLATION , Automatic Transmission Assembly.
