Reduction Driven Gear: Assembly

  1. Install the snap ring to reduction driven gear.
  2. Install the new ball bearing to reduction driven gear using press.
    Fig 1: Installing Ball Bearing To Reduction Driven Gear Using Press
    G06337279Courtesy of SUBARU OF AMERICA, INC.
  3. Install the snap ring to reduction driven gear.

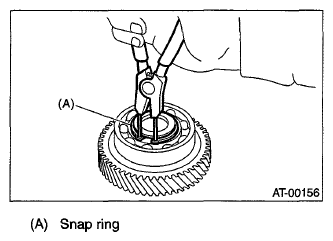

    Fig 2: Installing Snap Ring To Reduction Driven Gear
    G06337280Courtesy of SUBARU OF AMERICA, INC.
